Products Description

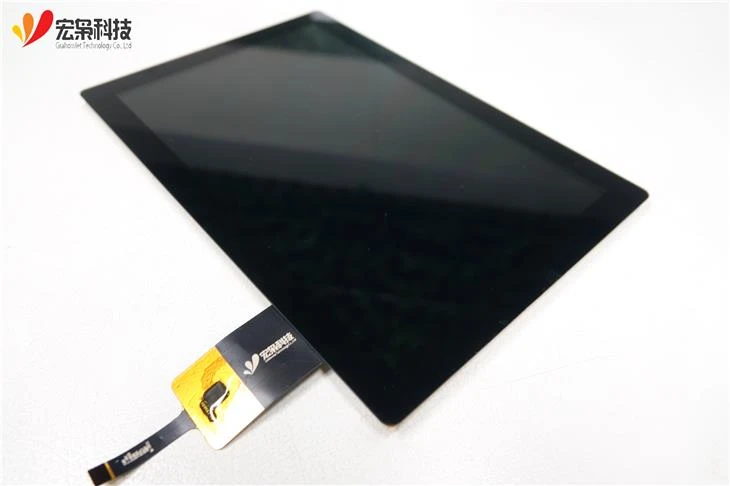

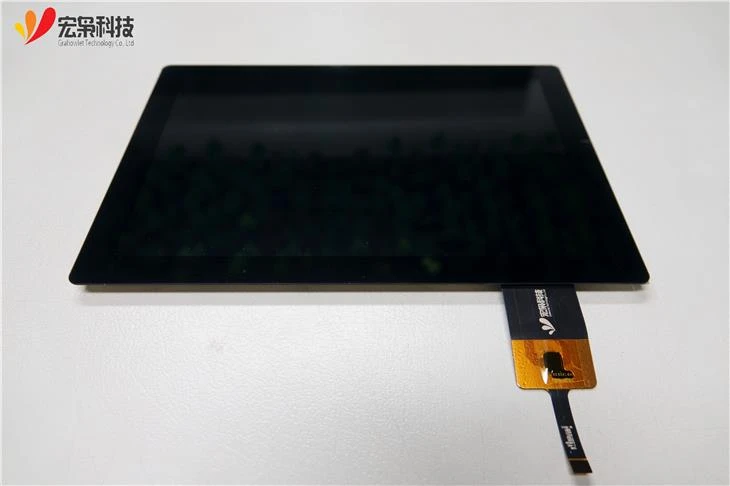

10.1 inch capacitive multi industrial touch display module belongs to the wide-temperature industrial product, which is lighter and thinner. It is exported from I2C interface, we can provide " I2C TO USB" bridge board .The display with1280*800 resolution and LVDS interface, which can be compatible with various common Operation systems, it can be equipped with drive board and cable, which is more suitable for flat assemble module structure installation products. The silk screen printing around is black，the display polarizer is relatively black, so the Black effect of the air bonding is better
| Model Number | HX1011702 |
| Brand | Grahowlet |
| Size | 10.1 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |
| Outline Dimension | 247.96(W)x166.60(H)x7.50(D) mm |
| Viewing Area | 217.76(W)x136.40(H) mm |
| Active Area | 216.96(W)x135.60(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Resolution | 1280X800 |
| Interface Type | LVDS/HDMI/RGB |
| Luminance | 450 cd/m² |
| Viewing Angle | 80/80/80/80 |
FAQ
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers; The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
