Product Description
-The 5 inch transparent oled touch display uses industrial touch chip GOODIX IC, can work with a variety of complex application environment.
-The 5 inch transparent oled touch display corresponds via USB interface which is HID compliant and eliminates the need for additional drivers.
-Made of premium materials, the 5 inch transparent oled touch display requires high strength and impact resistance in order to make sure its stable and consistent operation with clear and vivid display without shadow. As well, it is endurable with long service life that it can be used for a long period.
| TPM Specifications | ||
| TPM | Model Number | HX0501802 |
| Brand | Grahowlet | |
| Size | 5.0 inch | |
| Operating Temperature | -20℃ ～ 70℃ | |
| Storage Temperature | -30℃ ～ 80℃ | |
| Outline Dimension | 72.20(W)x133.30(H)x3.18(D) mm | |
| Viewing Area | 62.70(W)x111.88(H) mm | |
| Active Area | 61.92(W)x110.08(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
| CTP | Interface Type | I2C/USB |
| Material/Structure | G+F+F | |
| Controller IC | GOODIX | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 2.8V ～ 3.3V | |
| TFT | Resolution | 720*1280 |
| Interface Type | MIPI | |
| Luminance | 275 cd/㎡ | |
| Viewing Angle | ALL (IPS) | |
Product Catalogue
The catalog of our small and medium size standard PCAP touchscreen :
| Size | Part No. | Structure | View Area(mm) | Lens OD(mm) | Interface | Touch IC |
| 1.3 | HX0131801 | P+G | 36.00*6.00 | 44.50*11.90*0.70 | I2C/USB | FT6336U |
| 2.4 | HX0241701 | G+F+F | 37.72*49.96 | 48.00*86.00*1.50 | I2C/USB | CYTMA568 |
| 3.2 | HX0321801 | G+F | 78.78*21.18 | 90.00*28.00*1.50 | I2C/USB | FT6336U |
| 4 | HX0401602 | G+F | 52.44*87.00 | 65.70*109.10*1.85 | I2C/USB | FT6336U |
| 4.3 | HX0431601 | G+G | 96.04*54.86 | 105.50*67.02*1.83 | I2C/USB | CYTMA568 |
| 5 | HX0501601 | G+G | 108.80*65.60 | 120.70*76.30*2.20 | I2C/USB | CYTMA568 |
| 5 | HX0501603 | G+F+F | 62.70*111.10 | 73.92*142.88*1.55 | I2C/USB | GT5688 |
| 5 | HX0501708 | G+F+F | 62.70*111.10 | 70.00*132.50*1.48 | I2C/USB | CYTMA568 |
| 5.5 | HX0551601 | G+F+F | 68.64*121.56 | 75.12*146.19*1.525 | I2C/USB | GT5688 |
| 5.6 | HX0561806 | G+F+F | 113.70*85.47 | 142.90*114.67*2.50 | I2C/USB | CYTMA568 |
| 7 | HX0701601 | G+G | 154.88*86.72 | 165.00*100.00*1.45 | I2C/USB | CYTMA568 |
| 7 | HX0701711 | G+G | 95.20*151.52 | 104.50*162.00*1.13 | I2C/USB | FT5316 |
| 7 | HX0701804 | G+G | 155.01*86.72 | 198.49*116.31*2.20 | I2C/USB | CYTMA568 |
| 8 | HX0801703 | G+G | 108.64*173.22 | 130.60*203.20*1.45 | I2C/USB | GT911 |
| 8 | HX0801804 | G+G | 163.00*122.50 | 193.00*151.00*3.90 | I2C/USB | CYTMA568 |
| 8 | HX0801806 | G+G | 163.00*122.50 | 183.00*141.00*2.00 | I2C/USB | CYTMA568 |
| 10.1 | HX1011701 | G+G | 217.76*136.40 | 247.96*166.60*2.00 | I2C/USB | CYTMA568 |
| 10.1 | HX1011703 | G+G | 217.56*136.20 | 241.60*163.20*1.80 | USB | ILI2511 |
| 10.4 | HX1041803 | G+G | 212.00*159.20 | 224.20*175.10*2.40 | I2C/USB | CYTMA568 |
We can provide LCD display of various sizes, IPS, hight-brightness. For small screens up to 7 inches, we can also provide AMOLED screens. More information, please contact us.
TEL/WhatsApp: +86 15867195071
Email/Skype: sales@grahowlet.com
Website: www.grahowlet.com
Custom Service

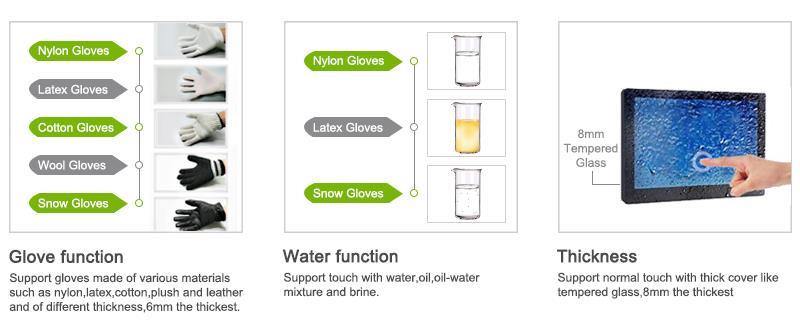

Product Feature
Application
Shipping&Packaging
FAQ
Q1: Is it possible we appoint the delivery agent?
Yes. Except the couriers we mentioned, we could use others as your requirement.
Q2: Is your company a real manufacturer?
Our company is a comprehensive service provider of capacitive touch screen in developing and manufaruing for many industries, we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves.you are warmly welcomed to visit our factory anytime.
Q3: How long can I get reply?
Within 24 hours. Chinese working time 8:30-18:00 Monday-Friday online service to help you solve problems.Also reply by phone or email,Skype is possible at night time and weekends.
