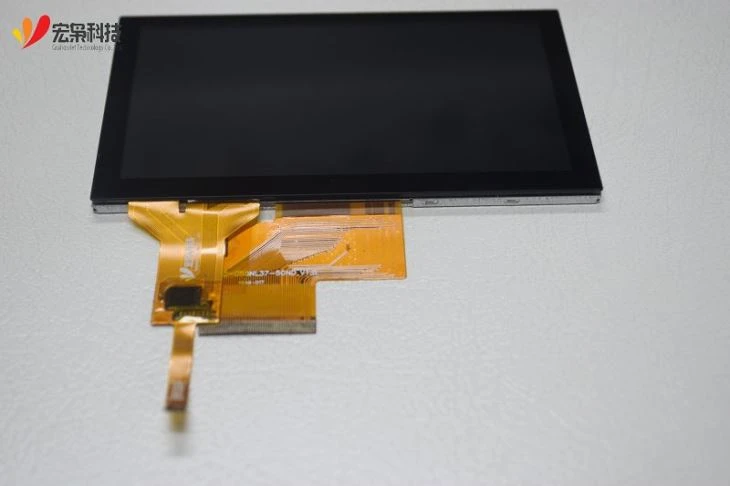

This 5 inch TFT Capacitive Touchscreen uses cypress touch controller ic, normally for industrial applications, Glass cover+Glass sensor structure. Strong interference performance, support operation with water, gloves, 10mm tempered glass on the top of the cover glass. Major applications in outdoor portable terminal, industrial, automotive, smart home appliances and other fields. structure and parameters can be customized accordingly.
This 5 inch TFT Capacitive Touchscreen module is normally light and thin. The thickness of the display screen is only 2.8mm. It is designed with 50PIN RGB interface ,which can be compatible with various common Operation systems, it can be equipped with HDMI/VGAdrive board, and cableand mounted with the capacitive touch screen by air-bonding. It is suitable for the installation of embedded assemble module. It is suitable for some hand-held industrial flat panel or portable intelligent terminal products with relatively compact structure, if used in outdoors. the backlight needs to be highlighted, This one can meet the requirements of industrial wide temperature range
The 5 inch TFT Capacitive Touchscreen is the important component which is designed to work together with the electronic products to display the clear video or words, doing no harm to the machine.Practical and versatile, it is compatible with the system of Windows, Android and Linux, etc.. It is also suitable for the phone, medical equipment, computer and so on.Made of high quality materials, it is endurable with wear resistance that it can be used for a long time. And it is energy-saving with low energy consumption. Also, it is green, safe and eco-friendly that it produces no harmful susbtances.
Product Description
Customize CTP/CTP+ LCD DISPLAY 1.3-65 inch
Full range of standard products in stock (no need for customization)
| Model Number | HX0501801 |
| Brand | Grahowlet |
| Size | 5.0 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |
| Outline Dimension | 120.70(W)X76.30(H)X5.00(D)mm; |
| Viewing Area | 108.80(W)X65.60(H)mm; |
| Active Area | 108.00(W)X64.80(H) mm; |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Resolution | 800X480 |
| Interface Type | RGB(50PINS)/HDMI/VGA |
| Luminance | 500 cd/m² |
| Viewing Angle | ALL |
Our Company
Hangzhou Grahowlet Technology is a comprehensive service provider of capacitive touch screen module and TFT LCD display for various industries. In order to meet different requirements of worldwide customers, Grahowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI,FocalTech, Goodix etc. according to different application environments. We provides solutions that match all customers’ touch screen needs and create products based on multiple technologies. We are committed to supply global customers with first-class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.
FAQ
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board; Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen, Bonding process: Air bonding & Optical bonding. Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
Q: Many industrial customers used resistive touch screens or untouched ones before, for the upgrade of projects, they may be the first time to deal with capacitive screens and don't have much understanding of the adjustment and functional application of capacitive screens, how did you serve this kind of customers in the early stage?
A: There are some customers who have just get involved in the capacitive screen products. In view of this situation, we usually cooperate in two situations:
First, if the project schedule is rather tense, we usually provide drive-free solutions directly. We can convert the IIC interface of the capacitive screen into the USB interface for direct application, we can also convert the display screen into various interface like VGA or HDMI for direct application, so that customers can save early time in early stage of development;
Second, if the project schedule is relatively abundant, we usually provide professional debugging data to the customer technicians, and then the specialized technicians in our company wil assist the customer in technical debugging. We have a professional technical team to do a good job of technical services in this area.
