Description

Technical Parameters

Product Description

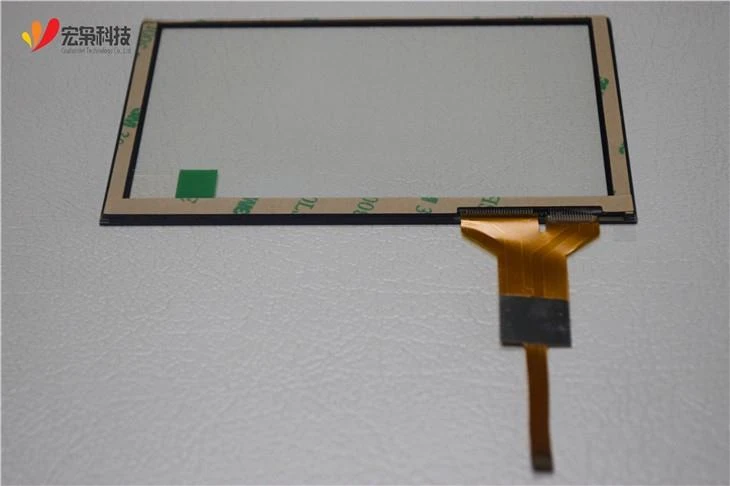

-The 5 inch touch screen panel for android is USES industrial grade chip CYPRESS IC, which has strong anti-interference performance and can be used in a variety of complex application environments. Such as work well with 3-10mm thickness tempered glass, water, gloves, seawater, 5% saline and PC onside.

-The 5 inch touch screen panel for android: PCAP touch screen interface is I2C interface, but we can convert I2C interface into USB interface through USB converter.

-Made of superior materials, the 5 inch touch screen panel for android has premium quality and endurable service life which is a good solution for the car, electronic products, industrial, smart home, medical industry and other fields.

-The 5 inch touch screen panel for android can match 800*480 resolution display screen, we can provide touch screen LCD dispaly module, USB and H DMI conversion board, which you can test immediately after you buy them.

Model Number	HX0501601
Brand	Grahowlet
Size	5 inch
Interface Type	I2C/USB
Structure	G+G
Controller IC	CYTMA568
Touch Points	10 points
Transparency	≥85%
Surface Hardness	≥6H
Operating Environment	-20℃ ~ 70℃,≤85% RH
Storage Environment	-30℃ ~ 80℃,≤85% RH
Power Supply Voltage	2.8V~3.3V
Outline Dimension	120.70(W)76.30(H)2.20(D) mm
Viewing Area	108.80(W)*65.60(H) mm
Support Systems	Windows/Android/Linux etc.
Warranty	12 months
