Product Description

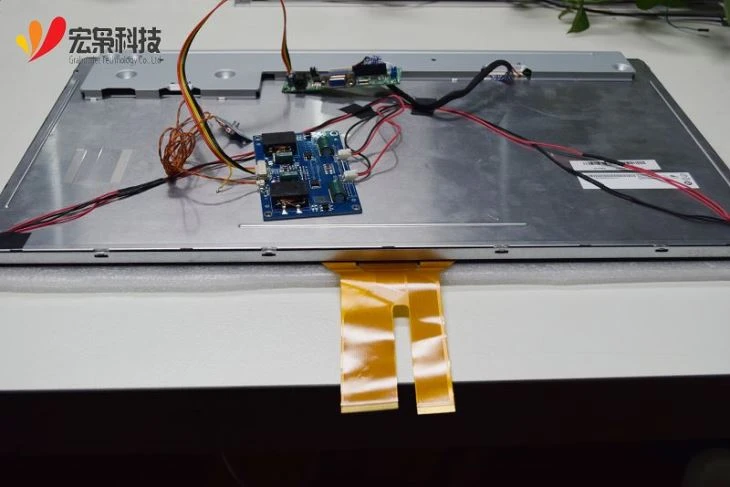

24 inch capacitive touch panel display with ILITEK touch controller ic can support operation with thick gloves ,thick tempered glass and thick PC on the top, mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds if interface conversion Boards and drive Boards are provided to meet requirements from various customers.
The display resolution of this 24 inch capacitive touch screen module product is 1920*1080, with a full view angle, which can match the VGA or HDMI interface driver board, We have TN and IPS material display screens to choose from. Both general brightness and high-brightness schemes are available. Air-bonding and optical-bonding process can be selected according to the actual needs of customer projects.
TPM | Model Number | HX2401802 V1.0 |
Brand | Grahowlet | |
Size | 24.0 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Outline Dimension | 556.0(W)x323.2(H)x19.7(D) mm | |
Viewing Area | 531.36(W)x299.29(H) mm | |
Active Area | 531.36(W)x298.89(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
P-CAP | Interface Type | USB/IIC |
Material/Structure | G+G | |
Controller IC | ILITEK | |
Touch Points | 10 points | |
Transparency | 85% | |
Surface Hardness | 6H | |
Power Supply Voltage | 5V | |
TFT | Resolution | 1920x1080 |
Interface Type | LVDS/HDMI/VGA | |
Luminance | 300 cd/m2; | |
Viewing Angle | ALL |
Quality Assurance
Quality Control: Full-inspection of Function and Appearance by OQC
Efficient Customer Service : respond to quality complaint and returns in one day
Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
FAQ
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers; The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
Q: There are some projects that require the working temperature range of the capacitive screen module to reach very wide, such as - 45 to + 90. Do you have any experience and suggestions for this kind of work?
A: If the wide temperature requirement of the module is more stringent, it needs to be analyzed from two aspects: first, if the capacitive touch screen needs to reach this temperature level, the ordinary sensor production technology can’t succeed, and we needs to take special ways to route the sensor, which can be specifically discussed with our technicians; Second, if the display screen needs to reach this temperature level, for the small size, we needs to use OLED (AMOLED) material, for the large size, we needs to heat and radiate the display screen, the specific details can be confirmed with our technician.
