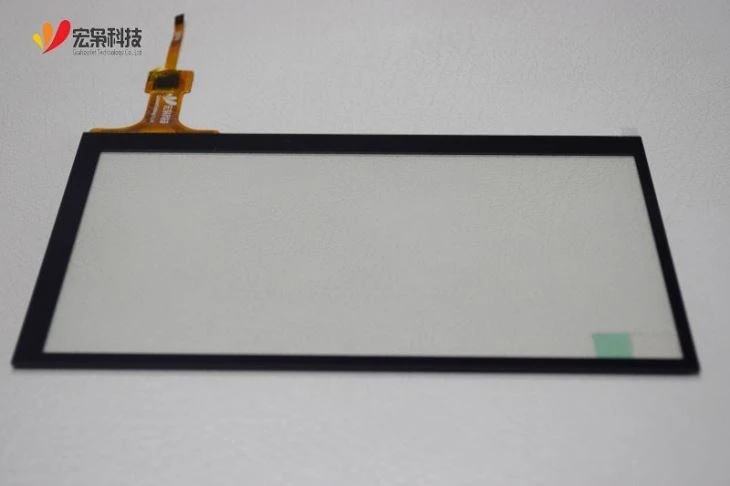

7 Capacitive Touch Screen

7 capacitive touch screen,Partial industrial application, strong anti-interference performance, support touch with gloves, water and thickening tempered glass or thick PC onside. mainly used in industrial, outdoor portable terminal, smart home appliances, medical electronics, automotive and...
Send InquiryChat Now

7 capacitive touch screen,Partial industrial application, strong anti-interference performance, support touch with gloves, water and thickening tempered glass or thick PC onside. mainly used in industrial, outdoor portable terminal, smart home appliances, medical electronics, automotive and other fields, surface special treatment and structure can be customized.





Model Number

HX0701704 V1.0

Brand

Grahowlet

Size

7.0 inch

Interface Type

IIC

Structure

G+G

Controller IC

Cypress

Touch Points

10 points

Transparency

≥85%

Surface Hardness

≥6H

Operating Environment

-20℃ ~ 70℃,≤85% RH

Storage Environment

-30℃ ~ 80℃,≤85% RH

Power Supply Voltage

2.8V ~    3.3V

Outline Dimension

178.71(W)x145.40(H)x1.45(D) mm

Viewing Area

154.88(W)x86.72(H) mm

Support Systems

Windows/Android/Linux etc.

Warranty

1 year



Functional Characteristics



Capacitive touch screen has been increasingly used in various fields with rapid technology development. In order to meet different requirements of worldwide customers, GraHowlet supply all kinds of product structures such as G + G, G + F (G + F + F ),P + G, etc. and various technical support programs such as Cypress , Atmel, EETI, FocalTech, Goodix etc. according to different application environments.



1



Our Advantage



icon1.png   icon2.png   icon3.png   icon4.png   icon5.png


Cost-effective

resource-rich products



Fast Production delivery

excellent after-sales service



Stable supply chain

long life cycle



Strong technical support

short response time



Wide Industry coverage

various mature solutions



Application






Internet of Things

Requirements of capacitive touch screen are not very high in this field ranging between pure industry and consumer applications. End products are express logistics hand-held terminals, hand-held POS terminals, convenient payment terminals, self-service terminals. They are mainly used in indoor environments and occasionally used in outdoor applications. These terminal products mainly pursue lightness and portability, so G + F (F) structure is generally recommended and G+G structure is chose by a small number of customers to be cost-effective.



Internet Of Things



Medical

Terminal products mainly refer to medical electronic products such as hand-held medical devices, wearable medical devices, portable medical machines, monitors, ECG, etc. Allowing for application scope and use cycle, medical products mainly requires sensitivity, long life cycle and good anti-interference performance for the touch screens. G + G structure is generally recommended and if there is relatively high demand of cost, P + G and G + F (F) structure could be used.



Medical



Our service



programe evsluation

1 to 2 morking days

Drawings

2 to 3 working days

Customized products

3 to 4 weeks(after drawings confirmed)

Mass Production delivery

4 to 6 weeks

Software debugging

Capacity

150K per month

Process capability

G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 ") Cover glass surface treatment AR, AG, AF

Technical support

Engineers to provide door-to-door or remote access service within 24 hours

Stable supply chain for at least 3 years guarantee

One year warranty time for all of our products



Packing or Shipping



Packing



FAQ



Q1: How can I trust your product quality?

We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS, FDA ect.



Q2: Is your company a real manufacturer?

Our company is a comprehensive service provider of capacitive touch screen in developing and manufaruing for many industries, we have our long-term business factories but the solution design & products developing and software debugging are all completed by ourselves.you are warmly welcomed to visit our factory anytime.



Q3: What kind of delivery method you always choose?

DHL/FedEx/UPS/EMS/TNT is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.



Q4: Is it possible we appoint the delivery agent?

Yes. Except the couriers we mentioned, we could use others as your requirement.



Q5:  Have you ever exported to foreign countries?

We have exported to France,Norway, UK, Poland, USA, Austria, Denmark, Greece, Netherlands, Canada, Brazil, Korea, and many other countries.



Q6: How to Contact us?

Send your Inquiry Details in the Below, Click "Send" Now!



Q7: Do you offer custom solution?

yes we can offer custom solution if standard producrs don't meet buyers' require.
