Touch Screen Glass

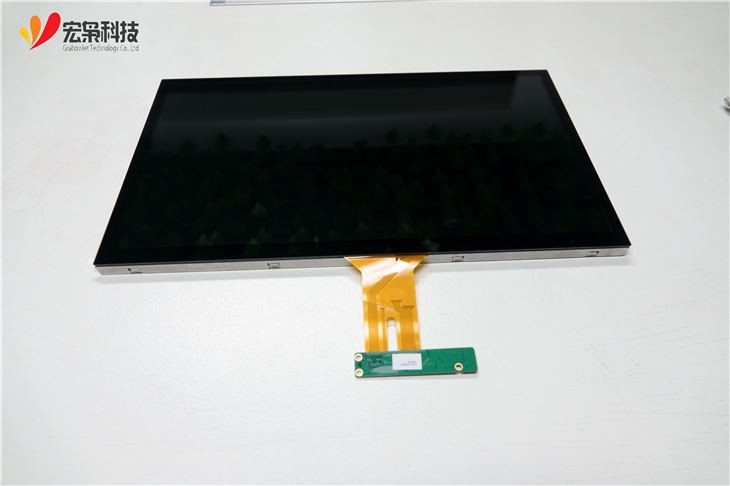

17.3 inch industrial capacitive touch screen glass sensor and glass cover, 17 inch capacitive touch screen glass sensor and glass cover touch with lcd display,support operation with gloves, water, and working well with additional 10mm thick tempered glass on the top. Mainly used in industrial, home appliances, medical, outdoor terminals and other fields.

	PCAP(projected capacitive) Model Number:HX1731703 V3.0 Size:17.3 inch Operating Temperature:-20℃ ~ 70℃,≤85% RH Outline Dimension:403.00(W)x240.00(H)x2.45(D) mm Viewing Area:383.89(W)x216.81(H) mm Support Systems:Windows/Android/Linux etc. Warranty:1 year
	Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:USB Controller IC :ILITEK Touch Points:1-10 Points Power Supply Voltage:5V
	TFT LCD TOUCH SCREEN Resolution:1920*1080 Interface Type:LVDS Luminance:400 cd/m² Viewing Angle:80/80/60/80

	MODULE PRODUCT DETAILS Model Number:HX1701702 Size:17.0 inch Operating Temperature:-20℃ ~ 70℃ Outline Dimension:377.00(W)x309.00(H)x2.40(D) mm Viewing Area:338.92(W)x271.30(H) mm Active Area:338.92(W)x271.30(H) mm Support Systems:Windows/Android/Linux etc.
	PCAP(projected capacitive) Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:USB Structure:G+G Material/Structure:ILITEK Touch Points:1-10 Points Power Supply Voltage:5V
	TFT LCD DISPLAY Resolution:1280*1024 Interface Type:LVDS Luminance:350 cd/m² Viewing Angle:85/80/85/85 Warranty:1 year

		Lens's Features Shape:Irregular and hole Color:Silk Printing,Logo Glass Brand:AGC,Corning,CG etc. Treatment:AG,AR,AF, Anti-explosion Thickness:0.55mm,0.7mm,1.0mm,1.1mm,1.8mm,2.0mm,3.0mm,4.0mm,5.0mm,6.0mm,8mm
		Sensor Features Materials:Glass,fiilm,film+film Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm FPC:shape design optional IC:Cypress,Atmel,Focaltech, Goodix,EETI Interface:IIC,USB,SPI,RS232
		Assembly Optical Bonding:OCA,OCR Frame Adhension

Q1:Can you provide OEM service?

A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.

Q2: What's your after-sale service?

A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.

Q3: What payment methods your company accept?

For samples: payment in advance.

For mass production: 50% deposit and 50% balance before shipment.

Q4: What kind of delivery method you always choose?

DHL/FedEx/UPS/EMS/TNT is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.
