Product Description
-The Raspberry Pi 5 Inch Touch Screen is especially designed for the Raspberry Pi, which also can work as a computer monitor that it works together with the electronic products to display the data and photos.
-Due to the high technology, it is available to provide the good touch response, fast response time as well as large viewing angle, making the touch screen stand out of the crowd with good performance.
-It has smooth surface and fluent lines which is made by the experienced workers with exquisite craftsmanship. And it is durable with long service life that it can be used for many times.
-As well, it is a kind of green products that it is environmentally friendly and ergonomic with no harmful substances, promoting to protect the nature and the human.
-Lightweight, the Raspberry Pi 5 Inch Touch Screen is manufactured with strict requirements in order to make sure the stable operation with outstanding performance. Besides, it is convenient to use, install and maintain with comfortable using experience.
-It is capable of offering the personalized service that you will obtain the unique one which is made based on your requirements.
Product Specification
TPM | Model Number | HX0501801 |
Brand | Grahowlet | |
Size | 5.0 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Outline Dimension | 120.70(W)X76.30(H)X5.00(D)mm | |
Viewing Area | 108.80(W)X65.60(H)mm | |
Active Area | 108.00(W)X64.80(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
CTP | Interface Type | IIC/USB |
Material/Structure | G+G | |
Controller IC | Cypress | |
Touch Points | 10 points | |
Transparency | 85% | |
Surface Hardness | 6H | |
Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 800*480 |
Interface Type | RGB(50pins)/HDMI/VGA | |
Luminance | 500 cd/m2; | |
Viewing Angle | ALL |
FAQ
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?

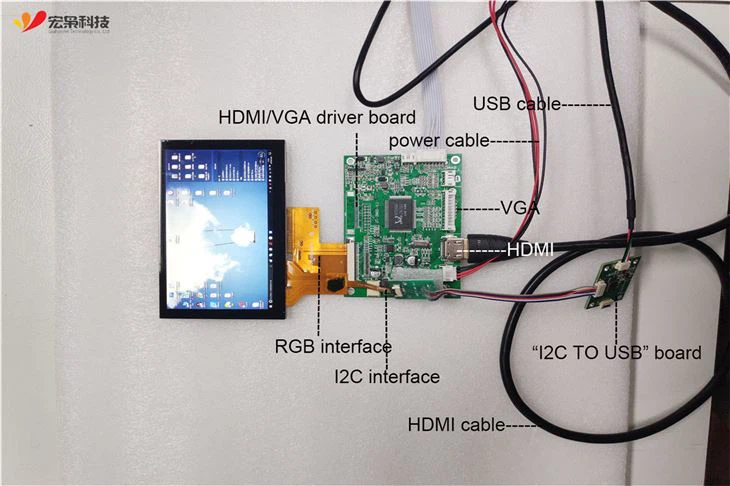

A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play.
Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system.
For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
