Products Description
Engineered for demanding environments, this high-performance capacitive touch display module delivers precise 5-point multi-touch response with exceptional durability.
comparison of product parameters

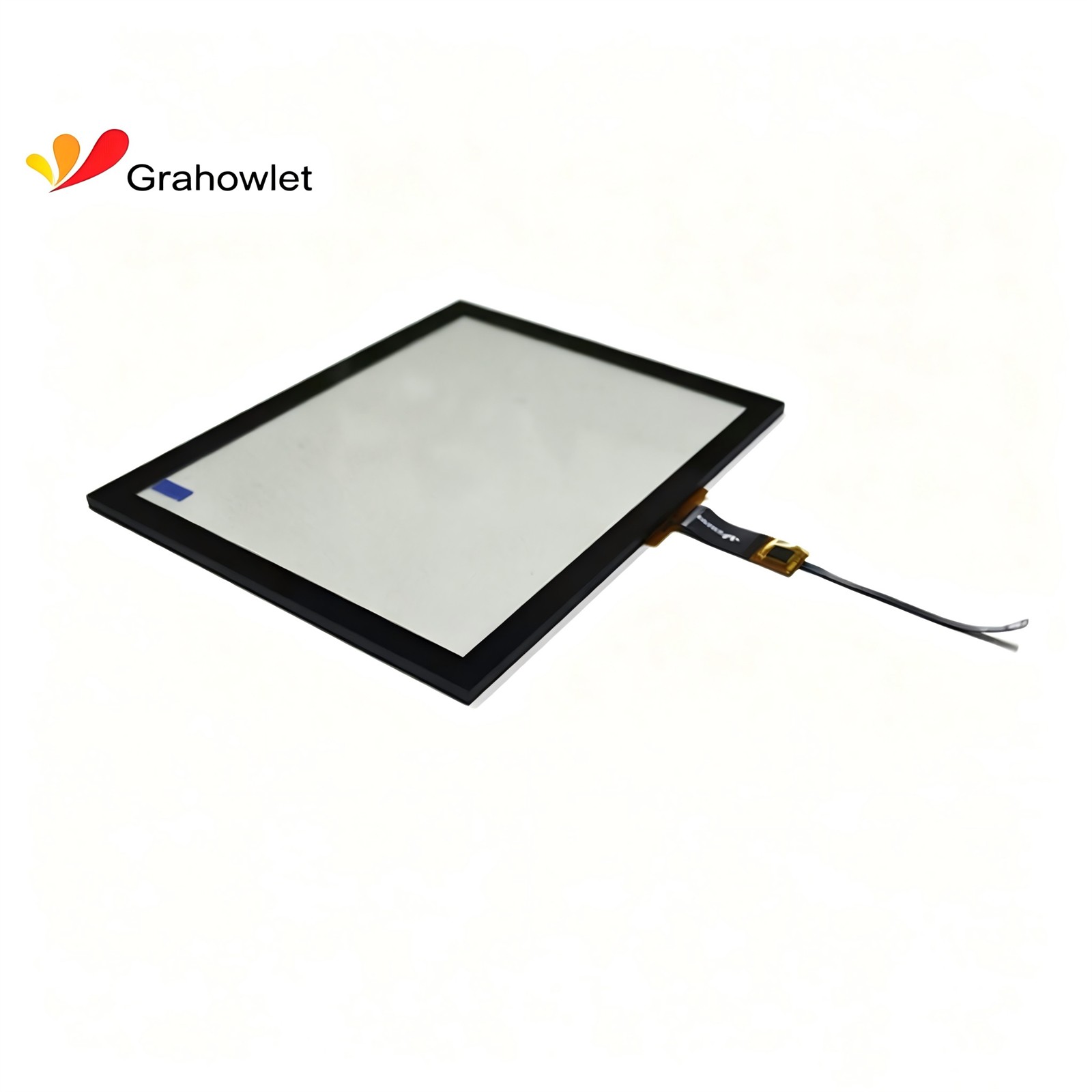

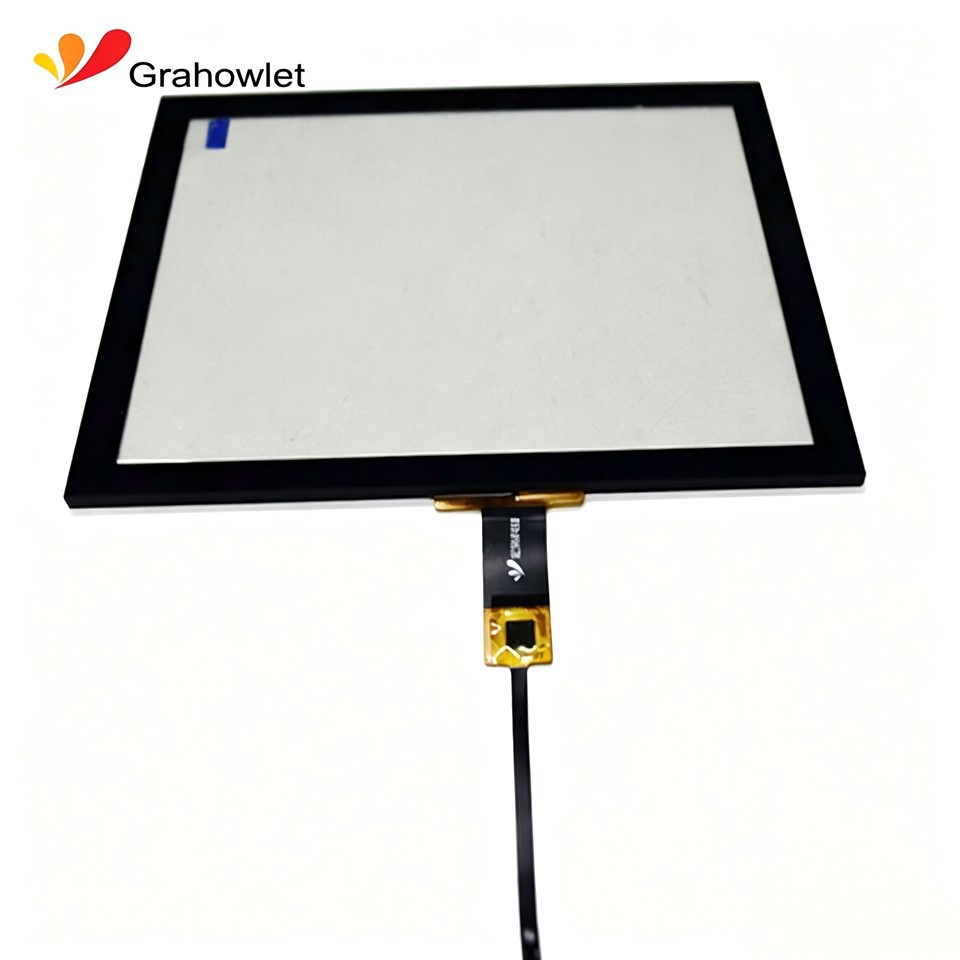

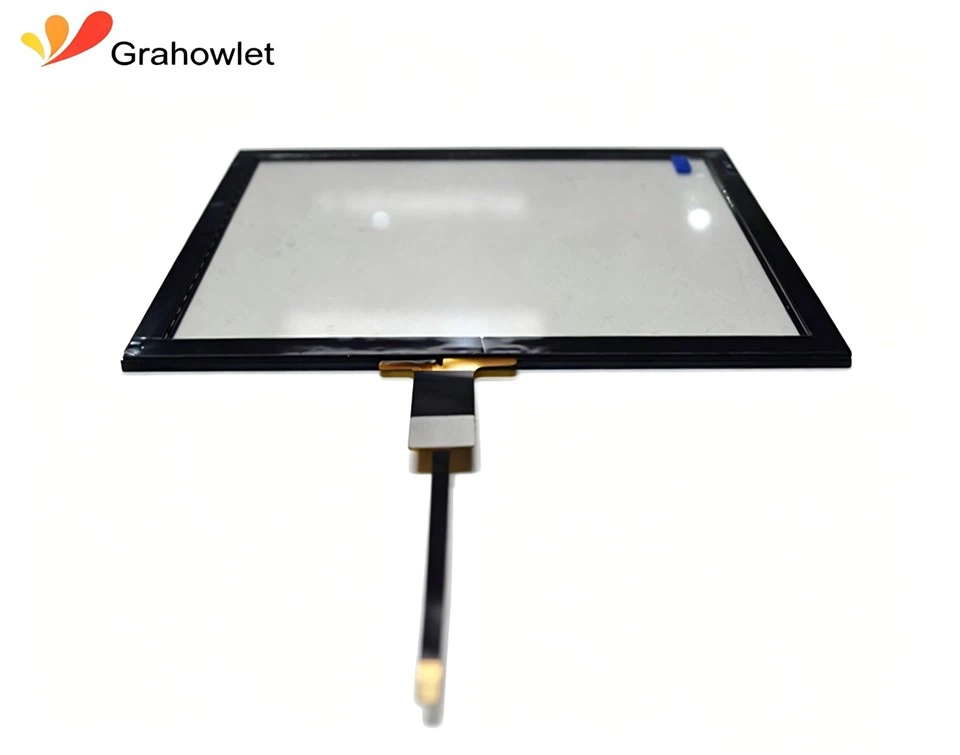

| Products name | Industrial 8inch Capacitive Touchscreen |
Brand |
Grahowlet |
| Products model | HX0801801 | Size | 8inch |
| Operating Temperature | -20℃~70℃,≦85%RH | Controller IC | CYTMA568 |
| Storage Temperature | -30℃~80℃,≤85%RH | Touch Points | 5 points |

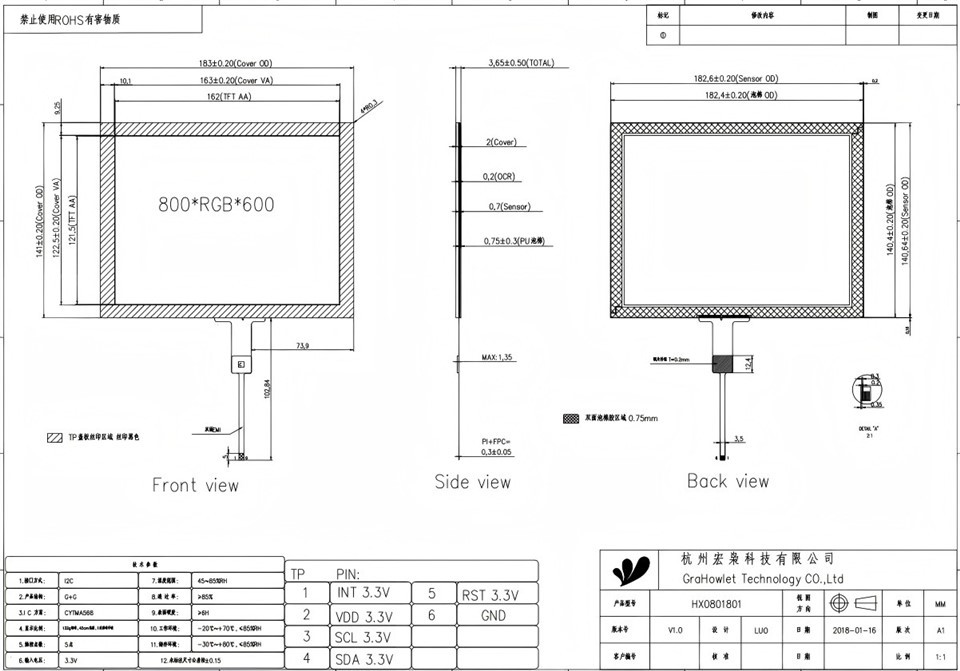

| Outline Dimension | 183(W)×141(H)×3.65(D)mm | Resolution | 800×600 |
| Viewing Area | 163(W)×122.5(H)mm | Bonding Workmanship | Air/Optical Bonding |
| Active Area | 162(W×121.5(H)mm | Application | Industrial Application |
| Support System | Windows/Android/Linux Etc. | Interface Type | IIC |
| Warranty | 1 year | Structure | G+G |
| Power Supply Voltage | 3.3V | Luminance | 350cd/m2 |
| Transparency | ≧85% | Surface Hardness |
≥6H |
5-POINT MULTI-TOUCH SUPPORT
Experience seamless, highly responsive multi-finger gesture recognition with precision 5-point capacitive touch technology. Whether pinching to zoom, rotating images, or executing complex multi-hand commands, this display module delivers smooth, lag-free interaction that enhances productivity and user engagement across all applications.
WATER & SALTWATER RESISTANT TOUCH OPERATION
Engineered to perform flawlessly in wet and humid conditions, this capacitive touch module maintains accurate touch detection even when the screen surface is covered with water, rain, or saltwater spray. Ideal for marine navigation systems, outdoor kiosks, food processing plants, and any environment where moisture exposure is unavoidable.
UNIVERSAL GLOVE-FRIENDLY TOUCH TECHNOLOGY
Breakthrough touch-through-glove capability supports gloves of all materials. This feature eliminates the need for users to remove protective gear, ensuring uninterrupted workflow in factories, laboratories, cold storage facilities, and outdoor work environments.
HIGH OPTICAL TRANSPARENCY (≥85%)
Enjoy crystal-clear visuals with industry-leading optical transparency of 85% or higher. This ensures that display content-whether text, graphics, or video-appears vibrant, and true-to-color, enhancing readability and reducing eye strain during extended use.
Hangzhou Hongxiao Technology Co., Ltd. is a national-level high-tech enterprise headquartered in Hangzhou, holding more than 30 certificates including invention patents and software copyrights. The company primarily engages in the research, development, production, and sales of capacitive touchscreens, LCD displays, capacitive touchscreen modules, industrial serial port touchscreens, fully laminated touch modules, interface driver boards, and structural components. The company operates a modern smart manufacturing facility for human-machine interaction terminal products. Its capacitive touchscreen modules are exported to thousands of customers worldwide and are widely used in fields such as medical devices, automotive applications, industrial control, charging stations, smart home systems, smart appliances, smart security, smart education, and smart robotics. With extensive experience in industry-specific project solutions, the company is capable of providing professional, customized solutions and technical services to clients across various sectors.
01
RICH Experience
With over10 years of industry expertise,our company has established itseif as a trusted leader in the design,development ,and manufacturing of high-performance capacitive touchscreens.
02
Advanced Machines
Integrated factory strength to support all kinds of capacitive touchscreen customization,with glass substrate,flim base,optical adhesive(OCA),ITO coating all raw material production capacity.
03
Excellent Technology
We deliver high-sensitivity projected capacitive touch solutions supporting multi-touch, glove operation, and harsh-environment use. With full OEM/ODM customization our technology ensures precision, durability, and excellent user experience across industrial, medical etc.
04
Custom Service
We offer complete OEM/ODM custom service for capacitive touchscreens – from raw material selection (glass substrate, ITO coating, OCA bonding) to structural design, firmware tuning, and environmental adaptation.
| project Assessment | 1~2working days |
| Blueprints | 2~3working days |
| Custom Product | 3~4weeks(After the drawings have been approved) |
| Mass Production Delivery | 4.3~5weeks |
| Capacity | 100k per month (10.1inches for reference) |
| technical capacity | G+G/G+F+F,shielding process Full Lamination(OCR/OCA),cover glass surface treatments such as AR,AG,AP,etc. |
| Technical Support | Enginees provide door-to-door or remote access services within 24 hours |
| A stable supply chain guaranteed for at least 3 to 5years | |
| One-year warranty on all our products | |

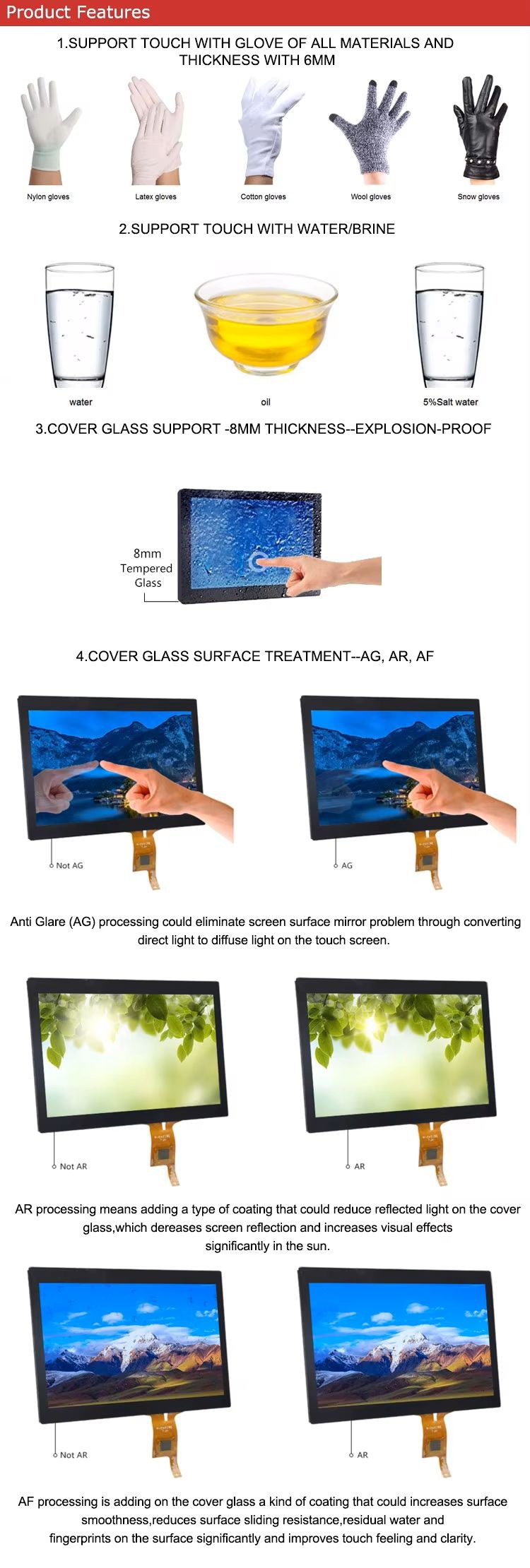

Products Description

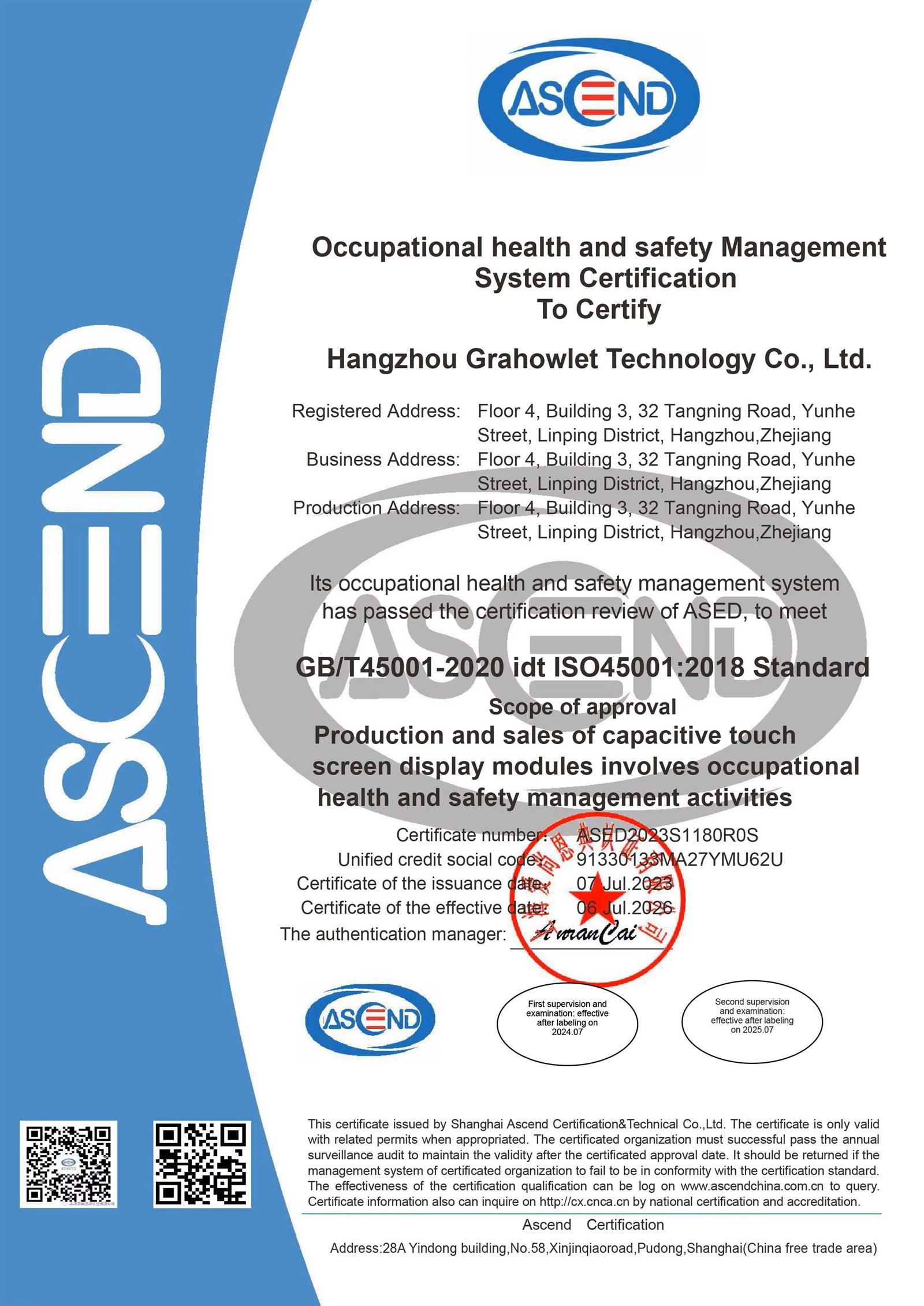

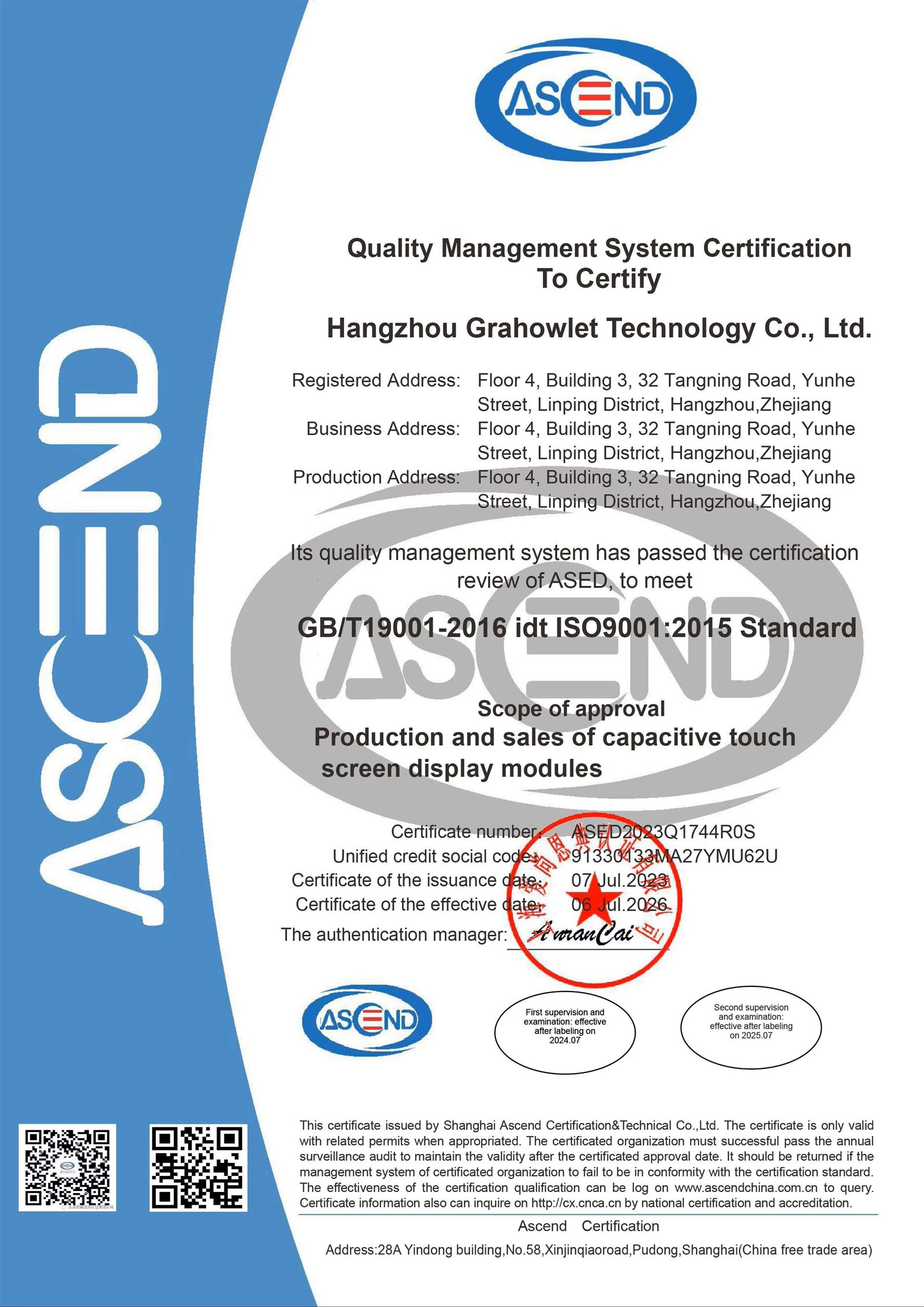

Certification
Frequently Asked Questions
Can you provide OEM service?
-
Yes, we offer both OEM and ODM services and can customize products based on the drawings you provide.
How can I trust your product quality?
+
-
We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
What's your after-sale service?
+
-
If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
What is the minimum order?
+
-
:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function. once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
How long is the warranty time for your products?
+
-
Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
