Product Description

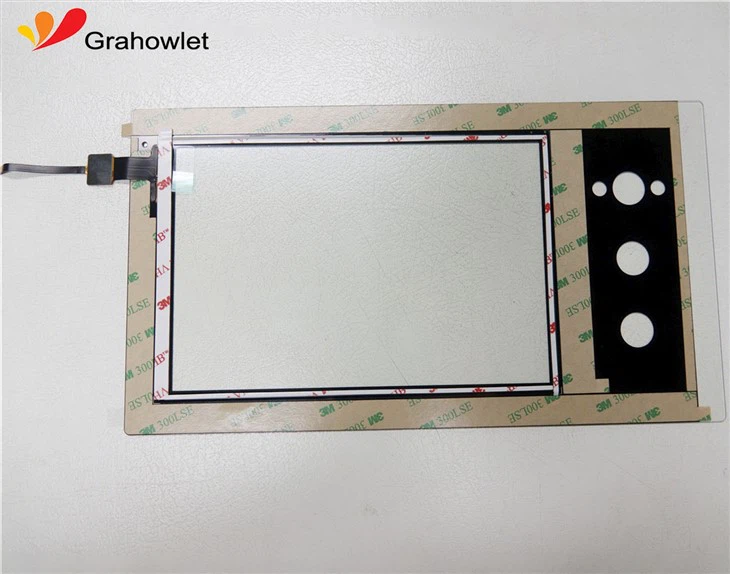

The 8-inch capacitive touch glass panel provides high touch sensitivity, enabling precise and responsive interactions.Featuring multi-touch capabilities, users can perform various gestures such as pinch-to-zoom and swiping for an enhanced and intuitive user experience.Designed with durability in mind, the screen is resistant to scratches, providing long-lasting performance in demanding environments.The capacitive technology ensures a fast response time, reducing latency and improving the overall speed of touch interactions.The 8-inch capacitive touch glass panel features a sleek and modern design, complementing the aesthetics of various devices and applications.Designed for easy integration into different devices, the touch screen facilitates seamless incorporation into diverse products and systems.
| Model Number | HX0801811 | Surface Hardness | ≥6H |
| Brand | Grahowlet | Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Size | 8.0 inch | Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Interface Type | IIC/USB | Power Supply Voltage | 2.8V ～ 3.3V |
| Structure | Glass+Glass | Outline Dimension | 145.50(W)x275.50(H)x1.85(D)mm |
| Controller IC | GT911 | Viewing Area | 108.44(W)x173.02(H)mm |
| Touch Points | 10 points | Support Systems | Windows/Android/Linux etc. |
| Transparency | ≥85% | Warranty | 1 year |
Custom Service
If you want USB interface, we can supply IIC to USB Bridgeboard
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board; Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen, Bonding process: Air bonding & Optical bonding. Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
