Product Description

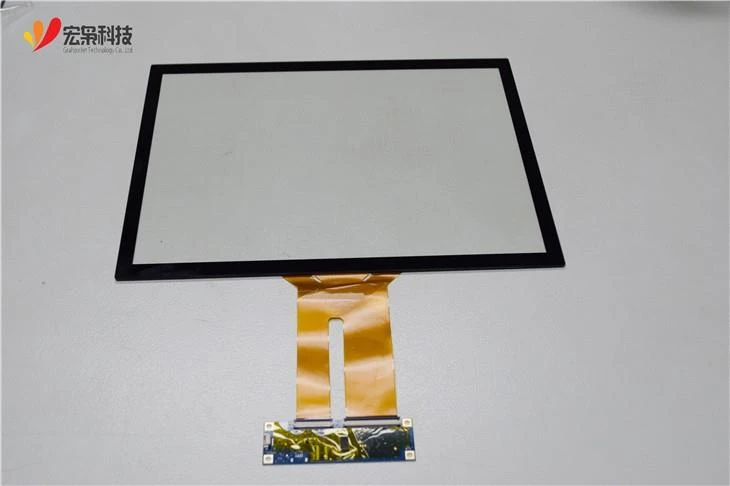

The capacitive 15-inch touch screen for a monitor with ILITEK touch controller ic can support operation with thick gloves, thick tempered glass, and thick PC on the top, mainly used in industrial, medical, outdoor advertising and other equipment. Deep customization including structural, surface treatment such as AG AR AF and other special effects are supported; All kinds of interface conversion Boards and drive Boards are provided to meet requirements from various customers.
The capacitive 15-inch touch screen for the monitor is a standard product launched by our company for customers in the industrial field. It can support some special functions and has excellent anti-interference performance. It has a black screen printing around and the interface is USB.
| Model Number | HX1501703 V1.0 |
| Brand | Grahowlet |
| Size | 15.0 inch |
| Interface Type | USB/IIC |
| Structure | G+G |
| Controller IC | ILITEK |
| TouchPoints | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃;~ 70℃,≤85% RH |
| Storage Environment | -30℃;~ 80℃,≤85% RH |
| Power Supply Voltage | 5V |
| Outline Dimension | 328.00(W)x255.00(H)x3.30(D) mm |
| Viewing Area | 305.00(W)x228.00(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Technical Q&A
Q: About the capacitive screen we are using now, the power supply interference problem is very serious. What should we do to eliminate the interference of the power supply? Apart from scanning frequency to avoid the noise frequency of the power supply, improve the signal-to-noise ratio of the screen? Is there any other way?
A: Seeing from all current cases, power supply interference is mainly concentrated in large-size TP (7inch or above), and we have the following solutions:
(1) Choose a quality power supply. This is very important and the most effective and fundamental way to solve power disturbances;
(2) Frequency hopping. Use the spectrum analyzer to find the area where the common-mode interference strength of the adapter is small, and then set the TX scan frequency to this area through a software setting, which can effectively control the interference. If there is interference in the full frequency band, it is recommended to abandon the adapter;
(3) Improve the signal-to-noise ratio. In the initial design of TP (7.0inch or above), consider using the low-impedance surface-rent material for the RX signal channel and using the design of the double-sided trace. Try to control all the channel resistances within 10K, which can effectively control the power supply interference. ;
(4) It is also possible to change the charger, increase the algorithm filtering, and adopt Cypress, EETI, ILI schemes with strong anti-interference performance.
Q: There are some projects that require the working temperature range of the capacitive screen module to reach very wide, such as - 45 to + 90. Do you have any experience and suggestions for this kind of work?
A: If the wide temperature requirement of the module is more stringent, it needs to be analyzed from two aspects: first, if the capacitive touch screen needs to reach this temperature level, the ordinary sensor production technology can’t succeed, and we need to take special ways to route the sensor, which can be specifically discussed with our technicians; Second, if the display screen needs to reach this temperature level, for the small size, we need to use OLED (AMOLED) material, for the large size, we need to heat and radiate the display screen, the specific details can be confirmed with our technician.
