Product Description

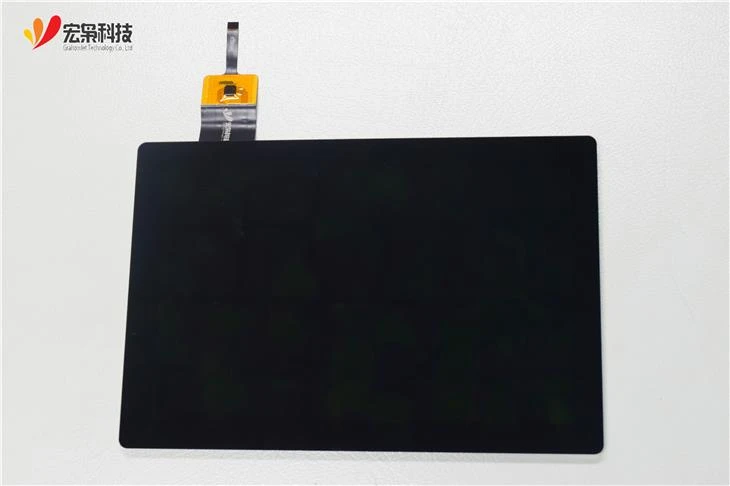

This lcd with touch screen is a 10-point capacitive touch screen with 1280*800 resolution LCD display, bringing you perfect experience. It works with various operating systems including Linux, Windows, Android, Ubuntu, and IOS. It uses industrial touch chip CYPRESS IC, can work with a variety of complex application environment. It can works with water, gloves or 6-8 mm thickness cover glass;
Product Parameter
TPM | Model Number | HX1011702 |
Brand | Grahowlet | |
Size | 10.1inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Outline Dimension | 247.96(W)x166.60(H)x7.50(D) mm | |
Viewing Area | 217.76(W)x136.40(H) mm | |
Active Area | 216.96(W)x135.60(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 12 months | |
CTP | Interface Type | IIC/USB |
Structure | Glass+Glass | |
Controller IC | CYPRESS | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 3.3 V | |
TFT | Resolution | 1280x800 |
Interface Type | LVDS/HDMI | |
Luminance | 450 cd/㎡ | |
Viewing Angle | 85/85/85/85 |
Our Advantage
 |  |  |  |  | ||||
Cost-effective resource-rich products | Fast Production delivery excellent after-sales service | Stable supply chain long life cycle | Strong technical support short response time | Wide Industry coverage various mature solutions |
Application
FAQ
Q1:How is the quality of the product?
Our products have been strictly tested high quality by QC before shipping to customers.
Q2: What kind of delivery method you always choose?
DHL/FedEx/UPS/EMS/TNT is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by air or sea.
Q3.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q4:What is the minimum order?
Our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
Once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q5: What special functions can you supply for touch screens?
Waterproof, gloves touching, thick cover glass(maximum 15mm), sunlight readable, high brightness, backlight enchancing, AF,AG, AR, optical bonding .....
Q6: How to Contact us?
Send your Inquiry Details in the Below, Click "Send" Now!
