Product Description
10.1 inchcapacitive touch screen for car , mainly used in car,medical products, advertising equipment, portable mobile terminals, security and other fields, support depth customization, including structural parts and Special surface treatment --AG AR AF, irregular structure etc.;

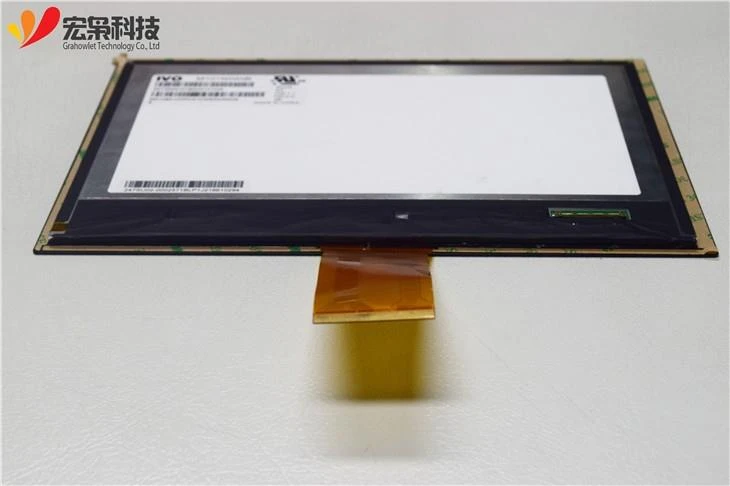

This 10.1-inch capacitive touch screen module belongs to the wide-temperature industrial product, which is lighter and thinner. It is exported directly from USB interface, 1280*800 resolution display screen and LVDS interface, which can be compatible with various common Operation systems, it can be equipped with drive board and cable, which is more suitable for flat assemble module structure installation products. The silk screen printing around is black，the display polarizer is relatively black, so the Black effect of the air bonding is better;
| Model Number | HX1011704 |
| Brand | Grahowlet |
| Size | 10.1 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |
| Outline Dimension | 165.00(W)x100.00(H)x5.00(D) mm |
| Viewing Area | 154.88(W)x86.72(H) mm |
| Active Area | 154.21(W)x85.92(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | ILITEK |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 5.0V |
| Resolution | 1280X800 |
| Interface Type | LVDS/HDMI/VGA |
| Luminance | 350~900 cd/m² |
| Viewing Angle | ALL |
Technical Q&A
Q: Capacitive screens used in industry often need to support some special functions because of industry characteristics, since you mainly make industrial capacitive touch screens, do you have any technical accumulation in this respect?
A: Yes, you're right. There are many special functions for industrial capacitive screens, for example, for outdoor applications or some products with water in the environment, capacitive touch screens themselves need to support water touch, even for marine equipment applications, they need to support sea touch and 5% saline water touch. In some pure industrial application environments, some workers will often operate with gloves, and the environment may also have organic oil, so the capacitive touch screen itself needs to support glove operation and anti-oil pollution function; And then, for example, some outdoor products or some special field application products need explosion-proof and shock-proof, The surface of the capacitive touch screen will be protected by thick tempered glass, so it needs the capacitive screen itself to support the operation function with thick cover. Generally, at present, we have a certain technical accumulation in the aspects of capacitive screen supporting water, glove operation and oil resistant function, thick cover and so on. The specific details can be discussed with our technicians based on the actual situation.
