Description
Technical Parameters
Product Description
-The 8 inch lcd touch screen for industrial tablet is the new product with the latest design which is produced by out technological team with rich experience.

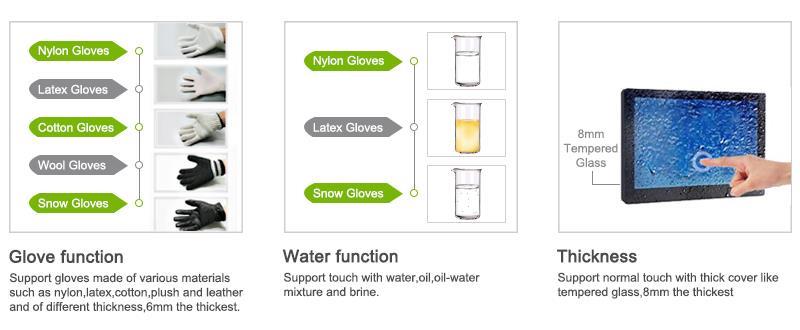

-The 8 inch lcd touch screen for industrial tablet USES industrial grade chip CYPRESS IC, which has strong anti-interference performance and can be used in a variety of complex application environments. Such as work well with 3-10mm thickness tempered glass, water, gloves, seawater, 5% saline and PC onside.
| TPM Specifications | ||
| TPM | Model Number | HX0801802 |
| Brand | Grahowlet | |
| Size | 8.0 inch | |
| Operating Temperature | -20℃ ～ 70℃ | |
| Storage Temperature | -30℃ ～ 80℃ | |
| Outline Dimension | 183.00(W)x141.00(H)x8.55(D) mm | |
| Viewing Area | 163.00(W)x122.50(H) mm | |
| Active Area | 162.00(W)x121.50(H) mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
| CTP | Interface Type | I2C/USB |
| Structure | G+G | |
| Controller IC | Cypress | |
| Touch Points | 10 points | |
| Transparency | ≥85% | |
| Surface Hardness | ≥6H | |
| Power Supply Voltage | 2.8V ～ 3.3V | |
| TFT | Resolution | 800x600 |
| Interface Type | RGB/HDMI/VGA | |
| Luminance | 700 cd/㎡ | |
| Viewing Angle | 70/70/50/70 | |
Custom Service
Special Function
