Products Description

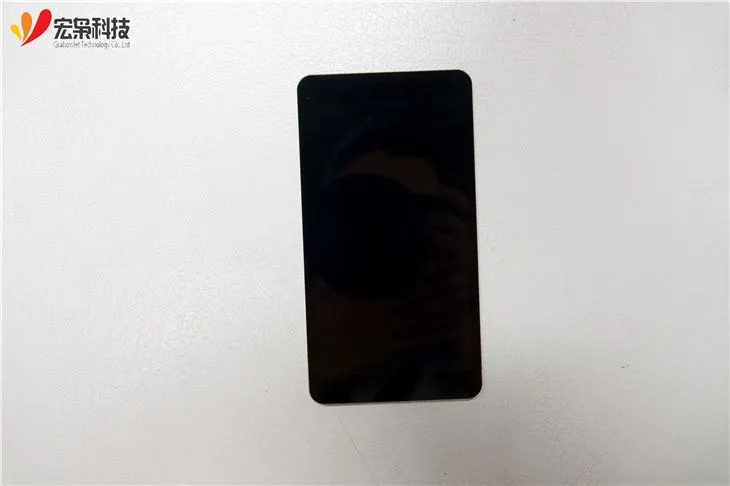

-This is a 5 inch capacitive touch screen panel with cypress touch controller ic can support operation with gloves, water , and working well with 10mm thick tempered glass or thick PC on top of the cover glass, mostly applied in consumer electronics, Mainly used in portable handheld terminals, medical electronics, intelligent security, home appliances and other fields. Customization supported,Air bonding and optical bonding optional, display and touch accept data customization.

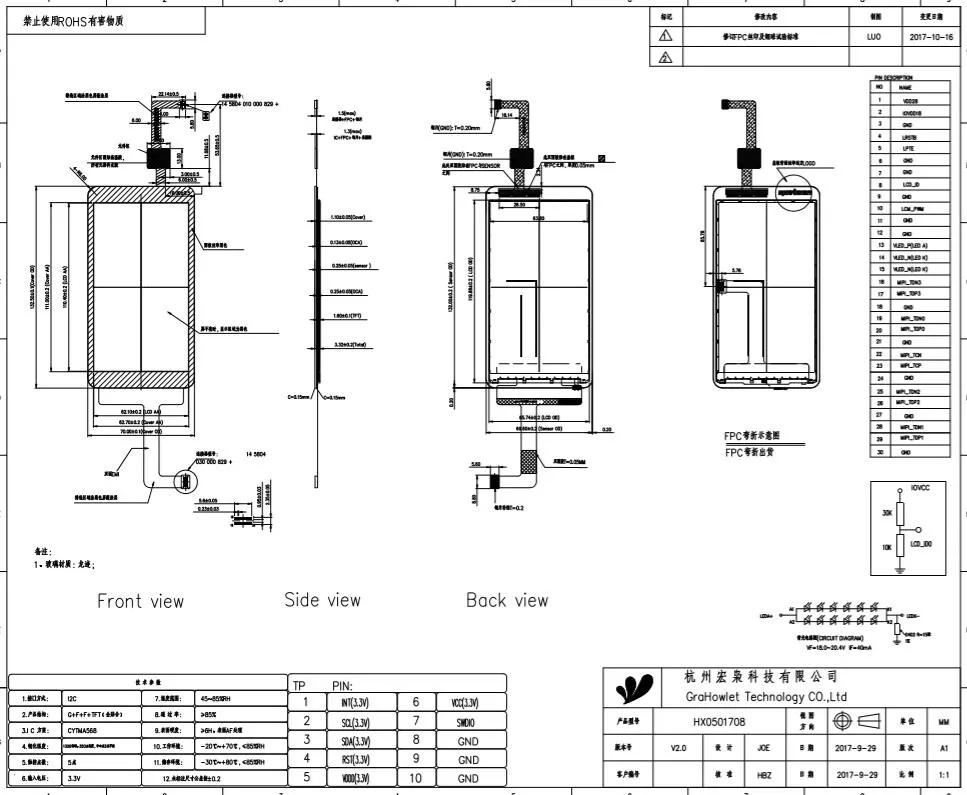

| Model Number | HX0501708 |
| Brand | Grahowlet |
| Size | 5.0 inch |
| Operating Temperature | -10℃ ～ 60℃ |
| Storage Temperature | -20℃ ～ 70℃ |
| Outline Dimension | 70.00(W)x132.50(H)x3.83(D) mm |
| Viewing Area | 62.70(W)x111.00(H) mm |
| Active Area | 62.10(W)x110.40(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Resolution | 720*1280 |
| Interface Type | MIPI/HDMI |
| Luminance | 500 cd/m² |
| Viewing Angle | ALL |
Internet of things
Touch screen solution
1.G+F+F structure, Corning glass cover with surface AF processed
2.Cost-effective Goodix GT970 program, debugging water function and
requiring glove function.
3.Optical bonding assembly with FPC screened.Selection recommendation
Technical Support
Industrial Control
Touch screen solution
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly, air-bonding is recommended.
Medical Equipment
Touch panel solution:
1.G +G structure, Asahi glass cover with surface AF processed
2.Cypress, fifth series program with good anti-interference performance
3.Normal Cost-effective module frame adhesion assembly and Overall module joint assembly with FPC and IC screened for emergency equipment.
Vehicle-mounted industry
Touch panel solution:
1.G+G structure, thick tempered glass cover with surface AG processed.。
2.Cypress program for screen size below 12.1 inch and ILI or EETI program
for screen size above 12.1 inch with good Anti-interference performance.
3.Considering the seismic explosion proof and wide temperature change, TP
and TFT optical bonding assembly is recommended.
