Product Description

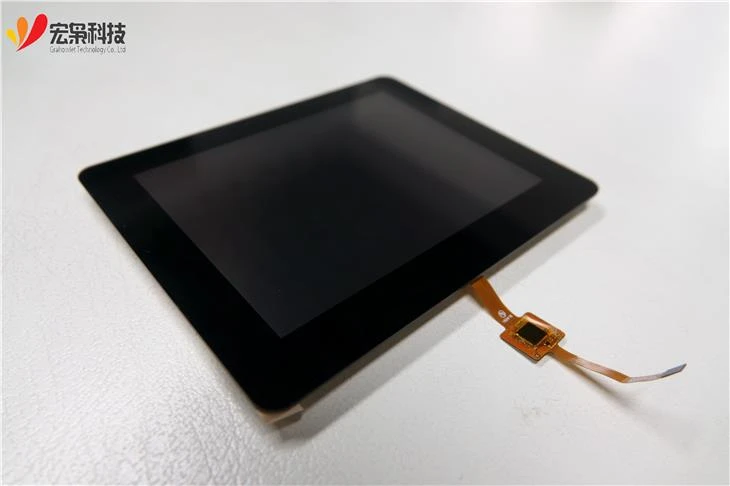

5.7 inch TFT display module with capacitive touch, I2C interface for touch, RGB interface for dislpay, 640x480 resolution, 350 brightness Touch IC cypress, industril IC solution, support operation under some tough environment, for example water, gloves, power interference...cover lens might not suit all customer, your own design is welcomed. Please contact supplier for more details:
| Model Number | HX0571806 |
| Brand | Grahowlet |
| Size | 5.7 inch |
| Operating Temperature | -20℃ ～ 70℃ |
| Storage Temperature | -30℃ ～ 80℃ |
| Outline Dimension | 142.90(W)X114.67(H)X8.30(D)mm |
| Viewing Area | 113.70(W)X85.47(H)mm |
| Active Area | 112.896(W)x84.672(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Resolution | 640X480 |
| Interface Type | RGB |
| Luminance | 350 cd/m² |
| Viewing Angle | 70/70/50/70 |
Technical Q&A<
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
Q: What should I pay attention to when the display screen and the capacitive touch screen are doing the air bonding ?
A: 1.The width of the frame adhesive can not be less than 1mm. When the width of the adhesive is less than 1.0 mm, the adhesive attachment and poor assembly of the finished product will increase significantly during the mass production process
2. When using the “口” shape glue to paste CTP and LCM, if the distance between the inner frame of the glue and AA area is less than 0. 7mm, a certain proportion of overflow glue will appear, affecting the appearance
