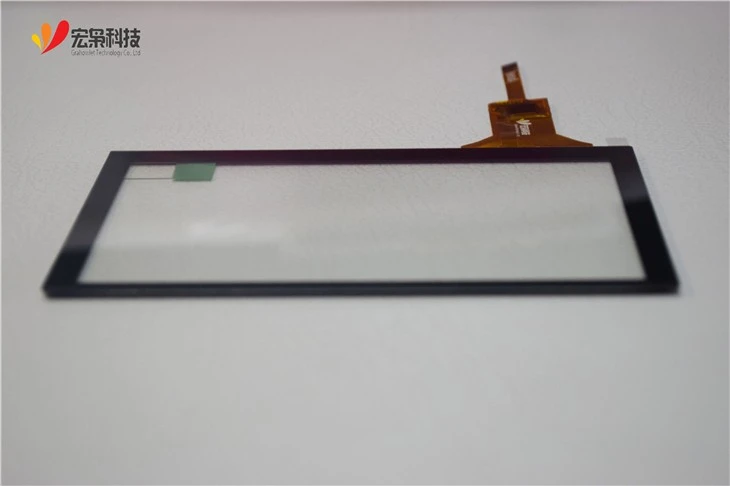

The capacitive multi 4.3 Touch Screen Display, mostly for industrial application.The main applications are in intelligent security, medical electronics, financial POS, portable mobile terminals and other fields. structural parts and special treatment of the surface can be customized. resolution, brightness and other parameters can be done according to the actual situation;
| Model Number | HX0431808 |
| Size | 4.3 inch |
| Operating Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Outline Dimension | 113.20(W)x87.20(H)x4.45(D) mm |
| Viewing Area | 94.60(W)x57.16(H) mm |
| Active Area | 93.60(W)x56.16(H) mm |
| Support Systems | Windows/Android/Linux etc |
| Light Transmittance | ≥85% |
| Surface Hardness | ≥6H |
| Interface Type | IIC/USB |
| Material/Structure | FocalTech |
| Touch Points | 10 points |
| Power Supply Voltage | 3.3V |
| Resolution | 800*480 |
| Interface Type | RGB |
| Luminance | 295 cd/m² |
| Viewing Angle | 80/80/80/80 |
| Warranty | 1 year |
Custom Service
If you want USB interface, we can supply IIC to USB Bridgeboard
