Touch Screen

Windows Touch Screen

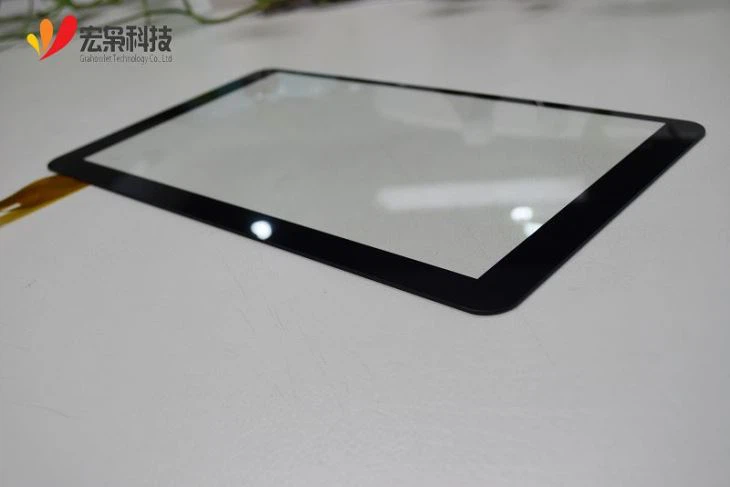

13.3 inch windows touch screen, works well with gloves of different kinds of materials, also normally operate with thick tempered glass or PC on top of the surface. G+G structure. Mainly used in medical electronics, portable mobile terminals, intelligent security and other fields, structure can...
Send InquiryChat Now

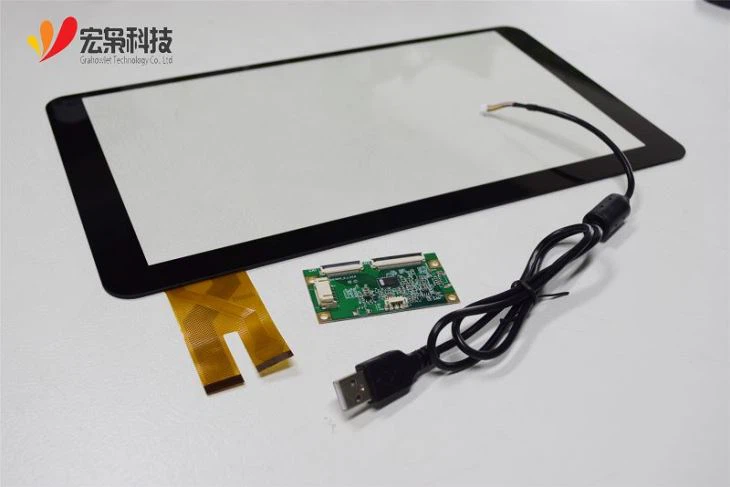

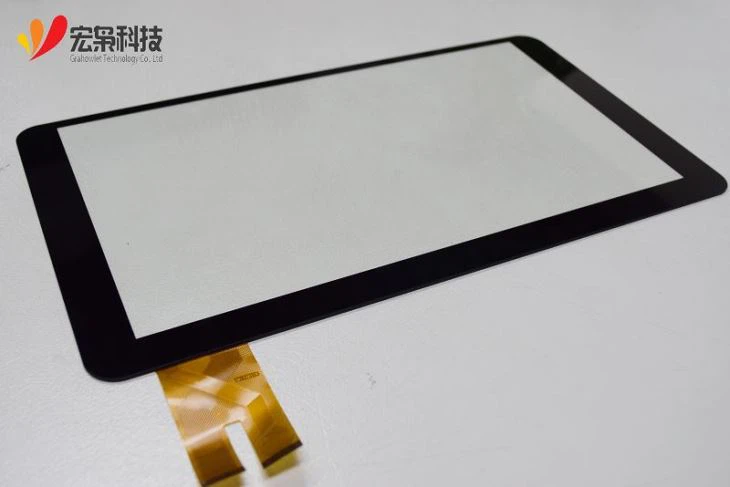

13.3 inch windows touch screen, works well with gloves of different kinds of materials, also normally operate with thick tempered glass or PC on top of the surface. G+G structure. Mainly used in medical electronics, portable mobile terminals, intelligent security and other fields, structure can be completely customized, Surface treatment AG AR AF can be customized according to actual needs;





Model Number

HX1331703 V1.0

Brand

Grahowlet

Size

13.3  inch

Interface Type

IIC/USB

Structure

G+G

Controller IC

EETI

Touch Points

10 points

Transparency

≥85%

Surface Hardness

≥6H

Operating Environment

-20℃ ~ 70℃,≤85% RH

Storage Environment

-30℃ ~ 80℃,≤85% RH

Power Supply Voltage

5V

Module Size

335.00(W)x197.00(H)x2.40(D) mm

Viewing Area

295.00(W)x166.60(H) mm

Support Systems

Windows/Android/Linux etc.

Warranty

1 year





Our Advantage



icon1.png   icon2.png   icon3.png   icon4.png   icon5.png


Cost-effective

resource-rich products



Fast Production delivery

excellent after-sales service



Stable supply chain

long life cycle



Strong technical support

short response time



Wide Industry coverage

various mature solutions



Application






Vehicle-mounted Industry

Capacitive touch screen requirement depends on the installation location (front or back) of the end products in the vehicle and the corollary devices. If end products are installed in front of the vehicle, in-vehicle control system, for example, requirements are relatively higher because they must meet relevant certification and explosion proof. Requirements are lower for end products located at the back of the vehicle such as car-borne navigation, audio-visual equipment and intelligent parking systems, intelligent traffic control terminals,etc.  Antiriot, earthquake-proof, visibility in the sun and anti-interference are generally concerned about for terminals in this field, so G + G structure is generally recommended and G + F (F) structure are likely to be considered for breech-loading products that are high volume and cost sensitive.

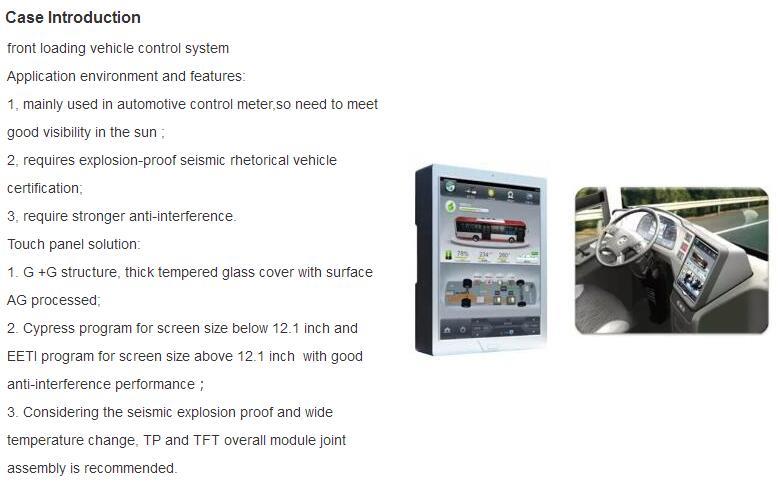

Vehicle-mounted Industry



TIM截图20181012125915

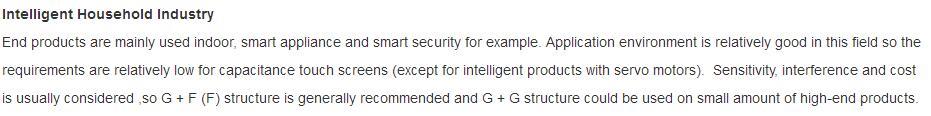

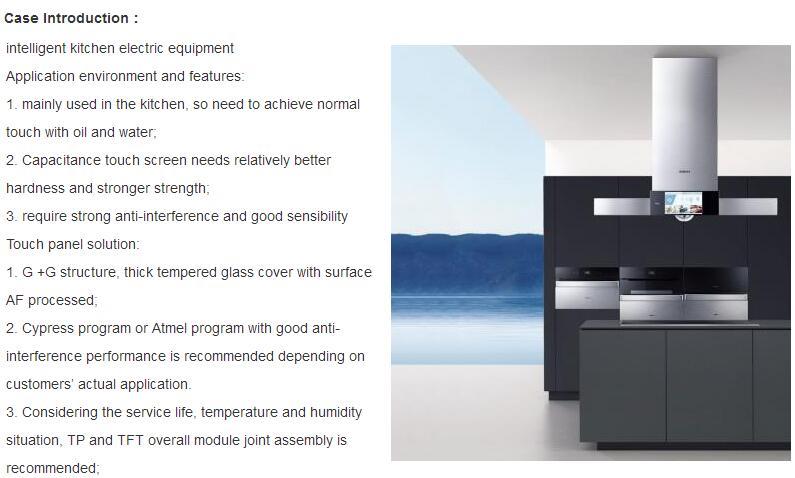

Intelligent Household Industry



FAQ



Q1: What is the minimum order?

our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.

once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.



Q2: How long is the warranty time for your products?

Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.



Q3: What is the lead time of the products?

3-5 working days for Samples in stock after receiving payment. 4-6 weeks for bulk orders



Q4: Can you produce custom-made projected capacitive touch screen panel overlays?

Yes,welcome to customize the projected capacitive touch screen panel products according to your requirements.



Q5: warranty?

13 months



Q6: What shall we do if we find any item missing or defectiv after receiving the goods?

Please contact us ASAP, we will check it and offer the best solution according to the situation.



Q7: Do you offer custom solution?

yes we can offer custom solution if standard producrs don't meet buyers' require.



Q8: How to Contact us?

Send your Inquiry Details in the Below, Click "Send" Now!
