     We can customize the Wide Touch screen according to customer needs,we are committed to supply global customers with first- class products and professional technical services in the touch industries. Our products are of high stability and anti-interference performance and used in various industries with complicated and difficult conditions.

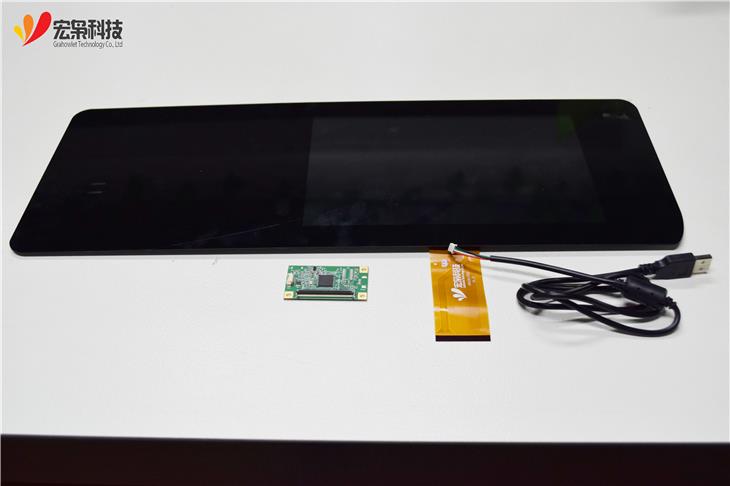

	PCAP(projected capacitive) Model Number:HX1731703 V3.0 Size:17.3 inch Operating Temperature:-20℃ ~ 70℃,≤85% RH Outline Dimension:403.00(W)x240.00(H)x2.45(D) mm Viewing Area:383.89(W)x216.81(H) mm Support Systems:Windows/Android/Linux etc.
	Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:USB/IIC/RS232 Structrue:Glass+Glass Controller IC :ILITEK Touch Points:1-10 Points Power Supply Voltage:5V

	MODULE PRODUCT DETAILS Model Number:HX1011706 Size:10.1 inch Operating Temperature:-20℃ ~ 70℃ Outline Dimension:488.71(W)x182.61(H)x7.16(D) mm Viewing Area:217.96(W)x136.60(H) mm Active Area:216.96(W)x135.60(H) mm Support Systems:Windows/Android/Linux etc.
	PCAP(projected capacitive) Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:USB/IIC Structure:Glass+Glass Controller IC :ILITEK Touch Points:1-10 Points Power Supply Voltage:5V
	TFT LCD DISPLAY Resolution:1280x800 Interface Type:LVDS/HDMI/VGA Luminance:350 cd/m² Viewing Angle:ALL Warranty:1 year

Here below are the main features of our position and product features:

•Industrial and Medical PCAP & LCD display module Manufacturer in CHINA

• PCAP size from 1.3"-65"

• PCAP & LCD module size: 1.3"-65"

• Optical Bonding service : 1.3"-21.5"

• HDMI & VGA  T-CON Board available

• IIC-USB interface Bridge board available

•CTP can be Customized with cover glass surface treatment process AG

(anti-glare), AR(anti-reflective), AF(anti-fingerprint)

• Support touch with 10mm cover glass.

• Support touch with pool of water.

• Support touch with 5mm gloves.

• Custom Highlight TFT (Up to 2300cd/㎡)

• Support operating temperature: -40℃-85℃.

Decades of Experiences in Capacitive touch industry,HangZhou Grahowlet Technology CO.,ITD is a comprehensive service provider of capacitive touch screen developing and manufaturing for various industries.

Accumulating decades of experiences in touch display industry,we could supply customers with electronic design,software debugging ,customized service and entire solution of touch display through the integration of various industry resources. We are committed to support global customers with first-class products and professional technical services.

Q1:What is the minimum order?

Our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.

once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.

Q2: How can I trust your product quality?

A:We have more than 10 years experience in touch screen industry.  From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.

by using our products, customers' products(overall equipment) have been approved by CE, CCC, explosion-proof, RHOS, FDA etc.

Q3:Can you provide OEM service?

A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
