Product Description

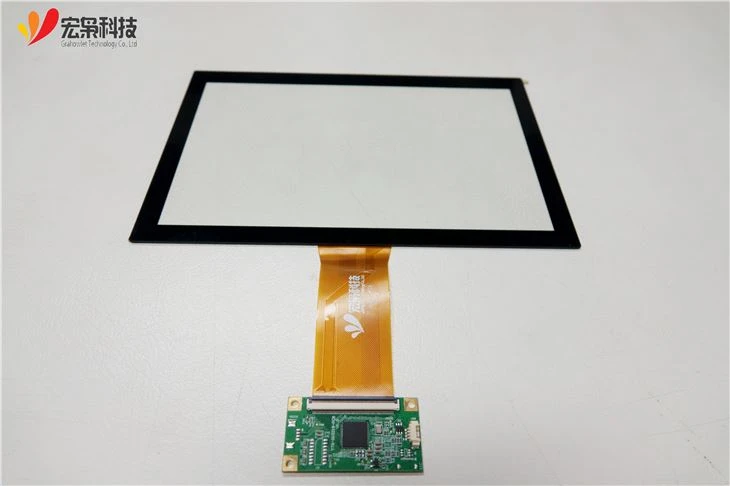

-The 10.1 inch projected capacitive touch panel for industrial tablets uses industrial-grade chip ILI2511 IC, which has strong anti-interference performance and can be used in a variety of complex application environments. Such as work well with 3-10mm thickness tempered glass, gloves and PC onside.
-The 10.1 inch capacitive touch panel for industrial tablet support customization of structure and surface treatment, Anti-Glare, Anti-Reflection, Anti-Fingerprint treatment. Our 10.1 inch touch panel for industrial tablet may be produced in a selected shape, color, size of cover glass, thickness, corner with logo and other additional elements as per specification provided by the client.
| Model Number | HX1011703 |
| Brand | Grahowlet |
| Size | 10.1 inch |
| Interface Type | IIC/USB |
| Structure | G+G |
| Controller IC | Cypress |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Outline Dimension | 193.00(W)x151.00(H)x3.90(D) mm |
| Viewing Area | 163.00(W)x122.50(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
Our Service
■ Programme evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks(after drawings confirmed)
■ Pruduction delivery :3 to 5 weeks
■ Capacity: 100K per month(10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
■ Technical support :We have more than 10 years of experience in touch screen industry, with a professional technical team, can always provide technical support for you.
■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
■ Quality Assurance:Quality Control: Full-inspection of Function and Appearance by OQC Efficient Customer Service : respond to quality complaint and returns in one day Reliability Test: high and low temperature storage test, cold and hot shock test, ESD servo motor disturbance test, etc.
FAQ
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers; The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
Q: There are some projects that require the working temperature range of the capacitive screen module to reach very wide, such as - 45 to + 90. Do you have any experience and suggestions for this kind of work?
A: If the wide temperature requirement of the module is more stringent, it needs to be analyzed from two aspects:
first, if the capacitive touch screen needs to reach this temperature level, the ordinary sensor production technology can't succeed, and we needs to take special ways to route the sensor, which can be specifically discussed with our technicians;
Second, if the display screen needs to reach this temperature level, for the small size, we needs to use OLED (AMOLED) material, for the large size, we needs to heat and radiate the display screen, the specific details can be confirmed with our technician.
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?
A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play. Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system. For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
contact us:hongxiao@grahowlet.com
