7 inch PCAP Touch Screen Panel Description

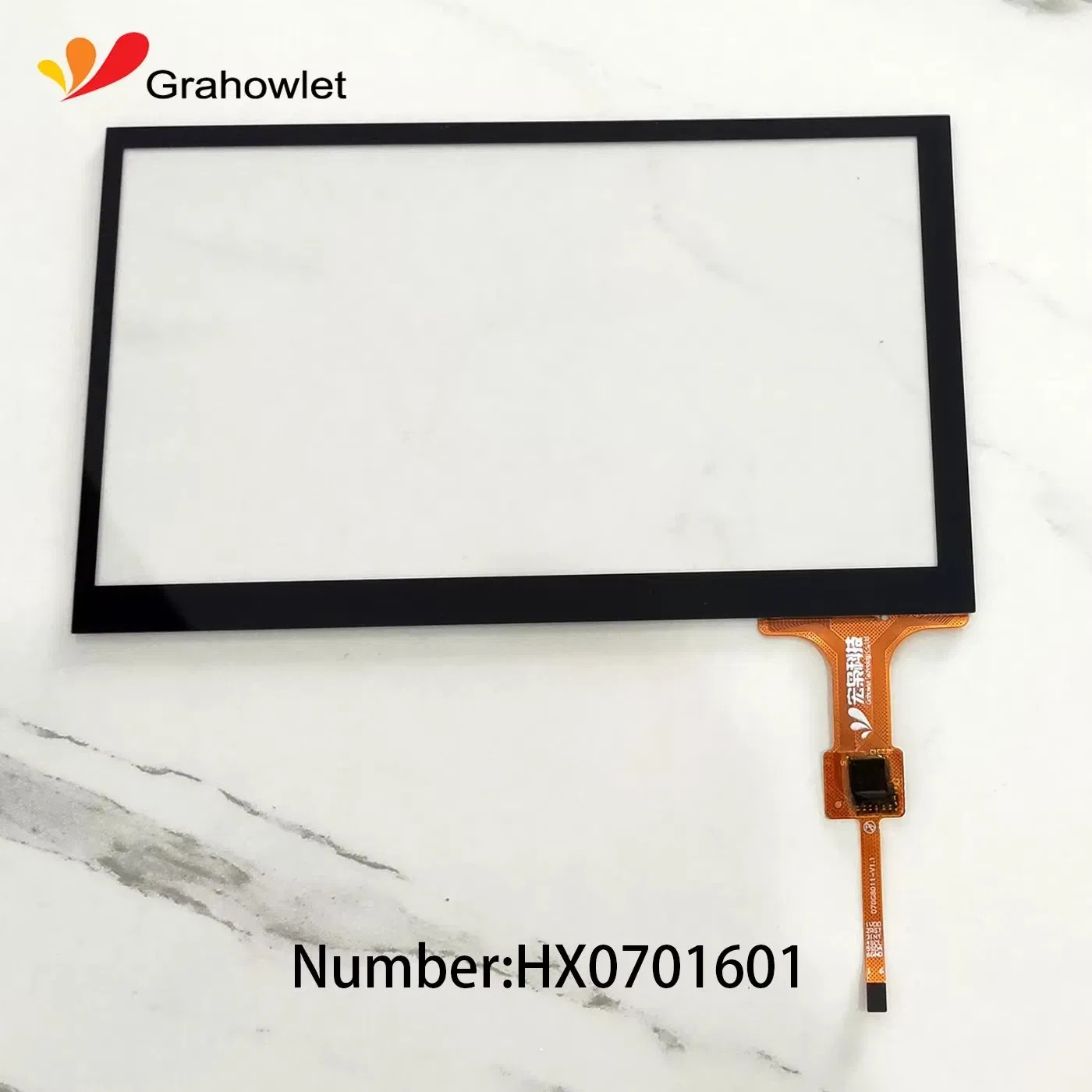

7-inch PCAP Touch Screen (Model: HX0701601 V2.0)
Key Specifications:
Size: 7 Inch
Interface: I2C / USB dual options for flexible integration
Structure: Glass+Glass (G+G) for enhanced durability and optical clarity
Controller IC: ILITEK, ensuring stable and responsive touch performance
Multi-touch Support: 10-point multi-touch, enabling smooth and intuitive operation
Transparency: ≥85%, delivering bright, clear visuals without compromising touch accuracy
Surface Hardness: ≥6H, providing strong scratch resistance for heavy-use scenarios
Operating Temperature: -20°C ~ 70°C, suitable for a wide range of working environments
Storage Temperature: -30°C ~ 80°C, withstanding varying conditions during transit and storage
Humidity Resistance: ≤85% RH (operating & storage), ideal for applications in non-condensing environments
Supply Voltage: 5.0V, low power consumption for energy-efficient designs
|
Model Number |
HX0701601 V2.0 |
Structure |
Glass+Glass |
|
Controller IC |
ILITEK |
Surface Hardness |
≥6H |
|
PCAP Interface |
USB/IIC |
Color | Black |
|
Touch Points |
10 Points |
Resolution | 800*480 |
|
Operating Temperature |
-20℃ ~ 70℃,≤85% RH |
Storage Temperature |
-30℃ ~ 80℃,≤85% RH |
|
Power Supply Voltage |
5V |
Warranty |
1 year |
Q: What makes the 7-inch PCAP Touch Screen Panel durable?
A: It is powered by the industrial-grade touch chip Cypress, ensuring reliable performance in various complex environments. Its durability makes it suitable for diverse industries.
Q: Can the touch panel be customized for specific applications?
A: Yes, it offers a high level of customization to meet specific user requirements. A variety of interface converting and drive boards are available, providing customers with convenience and flexibility.
Q: What are the benefits of the 10-point multi-touch functionality in the 7-inch PCAP Touch Screen Panel?
A: The 10-point multi-touch functionality ensures extremely accurate operation and supports a wide range of gestures such as swiping and zooming. This enhances user interaction and provides a seamless experience.
