Products Description

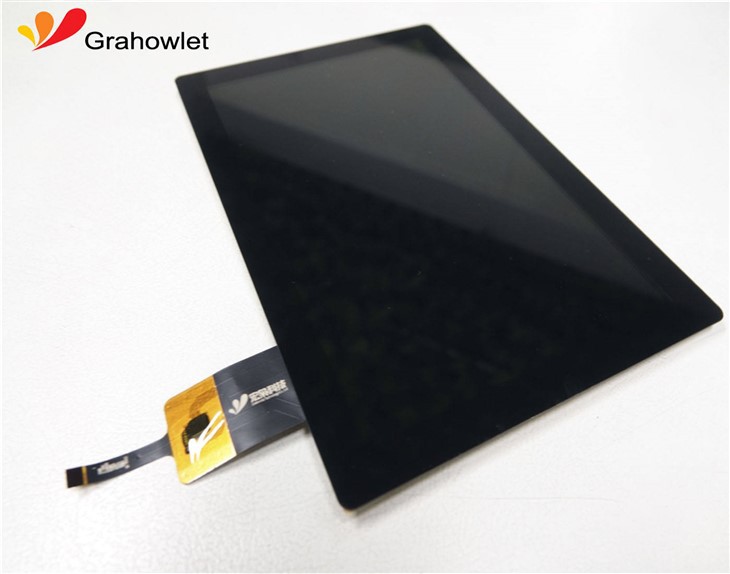

Industrial Embedded Capacitive Touch Screen Panel 10.1 Inch
comparison of product parameters
| Products name |
Industrial Embedded Capacitive Touch Screen Panel 10.1 Inch |
Brand |
Grahowlet |

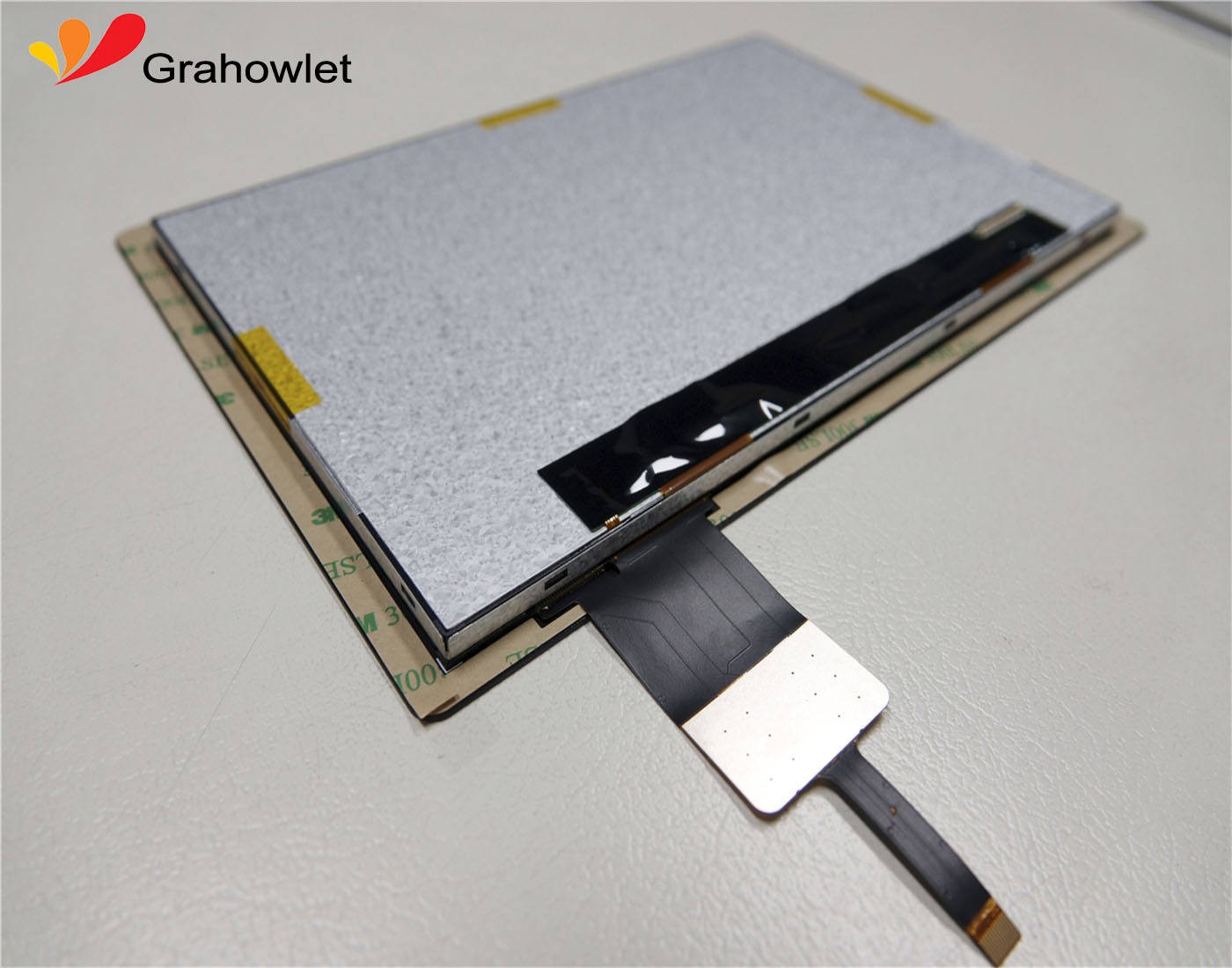

| Products model | HX1011702 | Size | 10.1inch |
| Operating Temperature | -20℃~70℃,≦85%RH | Controller IC | Cypress |
| Storage Temperature | -30℃~80℃,≤85%RH | Touch Points | 10 points |
| Outline Dimension | 247.96(W)×166.6(H)×7.5(D)mm | Resolution | 1024×800 |
| Viewing Area | 217.76(W)×136.4(H)mm | Bonding Workmanship | Air/Optical Bonding |
| Active Area | 216.96(W)×135.6(H)mm | Application | Industrial Application |
| Support System | Windows/Android/Linux Etc. | Interface Type | IIC/USB |
| Warranty | 1 year | Structure | G+G |
| Power Supply Voltage | 3.3V | Luminance | 450cd/m2 |
| Transparency | ≧85% | Surface Hardness |
≥6H |
10-POINT MULTI-TOUCH SUPPORT
Experience seamless, highly responsive multi-finger gesture recognition with precision 10-point capacitive touch technology. Whether pinching to zoom, rotating images, or executing complex multi-hand commands, this display module delivers smooth, lag-free interaction that enhances productivity and user engagement across all applications.
WATER & SALTWATER RESISTANT TOUCH OPERATION
Engineered to perform flawlessly in wet and humid conditions, this capacitive touch module maintains accurate touch detection even when the screen surface is covered with water, rain, or saltwater spray. Ideal for marine navigation systems, outdoor kiosks, food processing plants, and any environment where moisture exposure is unavoidable.
UNIVERSAL GLOVE-FRIENDLY TOUCH TECHNOLOGY
Breakthrough touch-through-glove capability supports gloves of all materials. This feature eliminates the need for users to remove protective gear, ensuring uninterrupted workflow in factories, laboratories, cold storage facilities, and outdoor work environments.
HIGH OPTICAL TRANSPARENCY (≥85%)
Enjoy crystal-clear visuals with industry-leading optical transparency of 85% or higher. This ensures that display content-whether text, graphics, or video-appears vibrant, and true-to-color, enhancing readability and reducing eye strain during extended use.
Hangzhou Hongxiao Technology Co., Ltd. is a national-level high-tech enterprise headquartered in Hangzhou, holding more than 30 certificates including invention patents and software copyrights. The company primarily engages in the research, development, production, and sales of capacitive touchscreens, LCD displays, capacitive touchscreen modules, industrial serial port touchscreens, fully laminated touch modules, interface driver boards, and structural components. The company operates a modern smart manufacturing facility for human-machine interaction terminal products. Its capacitive touchscreen modules are exported to thousands of customers worldwide and are widely used in fields such as medical devices, automotive applications, industrial control, charging stations, smart home systems, smart appliances, smart security, smart education, and smart robotics. With extensive experience in industry-specific project solutions, the company is capable of providing professional, customized solutions and technical services to clients across various sectors.
01
RICH Experience
With over10 years of industry expertise,our company has established itseif as a trusted leader in the design,development ,and manufacturing of high-performance capacitive touchscreens.
02
Advanced Machines
Integrated factory strength to support all kinds of capacitive touchscreen customization,with glass substrate,flim base,optical adhesive(OCA),ITO coating all raw material production capacity.
03
Excellent Technology
We deliver high-sensitivity projected capacitive touch solutions supporting multi-touch, glove operation, and harsh-environment use. With full OEM/ODM customization our technology ensures precision, durability, and excellent user experience across industrial, medical etc.
04
Custom Service
We offer complete OEM/ODM custom service for capacitive touchscreens – from raw material selection (glass substrate, ITO coating, OCA bonding) to structural design, firmware tuning, and environmental adaptation.
| project Assessment | 1~2working days |
| Blueprints | 2~3working days |
| Custom Product | 3~4weeks(After the drawings have been approved) |
| Mass Production Delivery | 4.3~5weeks |
| Capacity | 100k per month (10.1inches for reference) |
| technical capacity | G+G/G+F+F,shielding process Full Lamination(OCR/OCA),cover glass surface treatments such as AR,AG,AP,etc. |
| Technical Support | Enginees provide door-to-door or remote access services within 24 hours |
| A stable supply chain guaranteed for at least 3 to 5years | |
| One-year warranty on all our products | |
Our company provides information on the structure and customizable details of a projected capacitive touch display module, broken down layer by layer:
1. Layer Breakdown (from top to bottom)
◦ Cover Glass: The outermost protective layer of the touchscreen.
◦ Sensor: The touch-sensitive layer that detects user input.
◦ TFT Screen: The liquid crystal display panel that produces the visual output.
◦ Tcon Board (Timing Controller Board): The driver board that processes signals and drives the display panel.
2. Customized Details
◦ PCAP (Cover Glass + Touch Sensor):
◦ Size, Touch IC, Shape, Color, Logo, Thickness, Interface, Structure, FPC (Flexible Printed Circuit), Surface Treatment, Operating Temperature
◦ TFT/OLED Display Panel:
◦ Resolution, Luminance, Interface, Brand
◦ Tcon Board:
◦ HDMI/VGA driver board, "IIC TO USB" bridge board, Conversion board for TFT, Serial Port Screen.
Our company provided our clients with a detailed overview of the components, features, and accessories of a touch screen module (TFT Bonded CTP):
1. Component Breakdown
◦ Touch Screen Module (TFT Bonded CTP): The fully assembled touch display unit.
◦ Cover Lens (Cover Glass):
◦ Features: Irregular shapes with cutouts available; supports silk printing and custom logos; compatible with glass brands like AGC, Corning, CG; can be treated with AG (Anti-Glare), AR (Anti-Reflective), AF (Anti-Fingerprint), or anti-explosion coatings; thickness options from 0.55mm to 6.0mm.
◦ Touch Sensor:
◦ Features: Materials include glass, film, and film-on-film; thickness from 0.005mm to 1.1mm; customizable FPC shapes; supports touch IC brands such as Cypress, Atmel Focaltech, Goodix, and EETI; interfaces include IIC, USB, SPI, and RS232.
◦ TFT LCD Display: The underlying display panel.
◦ Assembly: Available via Optical Bonding (OCA/OCR) or Frame Adhesion processes.
2. Additional Information
◦ If you want USB interface,we can supply IIC to USB bridgeboard.
Products Description
Product Features of the Touchscreen Display
This image outlines the key performance and customization features of the touch display module, with explanations as follows:
1. Glove Touch Compatibility
The touchscreen supports accurate touch input through gloves of all materials, even with a combined thickness of up to 6mm.
Supported glove types include:
• Nylon gloves/ Latex gloves/Cotton gloves/Wool gloves/Snow gloves
2. Water/Brine/Oil Resistance for Touch
The touch function remains reliable when the screen is exposed to or operated with:
• Pure water/Oil/ 5% salt water (brine)
3. 8mm Thick Explosion-Proof Cover Glass
The display can be equipped with 8mm thick tempered cover glass, offering high impact resistance and explosion-proof performance, while maintaining normal touch functionality.
4. Optional Cover Glass Surface Treatments (AG, AR, AF)
The cover glass supports three types of functional coatings to enhance user experience and durability:
• Anti-Glare (AG) Treatment
Converts direct light into diffused light on the touchscreen, eliminating mirror-like reflections and reducing glare.
• Anti-Reflective (AR) Treatment
Adds a coating to reduce reflected light on the cover glass, significantly lowering screen reflection and improving visibility in bright sunlight.
• Anti-Fingerprint (AF) Treatment
Applies a coating to increase surface smoothness, reducing sliding resistance, residual water marks, and fingerprints. This improves both touch feel and visual clarity.
Certification
Our capacitive touch screens haved earned past coustomer raw reviews form across the globe,with consistent 5-star ratings highlighting their reliable performance ,precise touch response,and exceptional bulid quailty.
1. Wide Range of Standard Products (1.3" to 65")
We offer versatile touch IC solutions with robust support for a wide range of industry applications, complemented by specialized and personalized services. Our touch solutions support:
• Touch operation with water present
• Touch through gloves made of all kinds of materials
• Touch through cover glass with a thickness of up to 20mm
2. Reliable, High-Performance Products:
Our products feature stable quality, a long service life, and high anti-interference performance. Backed by a strong technical team, we offer diverse product options, including customized controller boards and metal frame components, to meet the specific requirements of your project.
3. Touchscreen & Display Production Capabilities
Advanced Manufacturing Facilities
We possess Class 1000 & Class 100 cleanrooms, as well as automatic dispensing and semi-automatic potting optical bonding production lines. These facilities enable us to offer a full range of automation processes for touch screens and displays.
Would you like me to combine these into a single, cohesive
Frequently Asked Questions
Can you provide OEM service?
-
Yes, we offer both OEM and ODM services and can customize products based on the drawings you provide.
How can I trust your product quality?
+
-
We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
What's your after-sale service?
+
-
If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
What is the minimum order?
+
-
:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function. once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
How long is the warranty time for your products?
+
-
Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
