- Hangzhou Grahowlet is a comprehensive touch display solution provider based on CTP, LCD (LCM) and capacitive screen module (TPM) researching, developing, designing and manufaturing. It is based in China and serves the whole world. Relying on the company's strong R&D technical strength, we constantly improve the existing products and research and development of new products, and strive to become a one-stop service provider for smart touch display products with leading technology and service in the world!

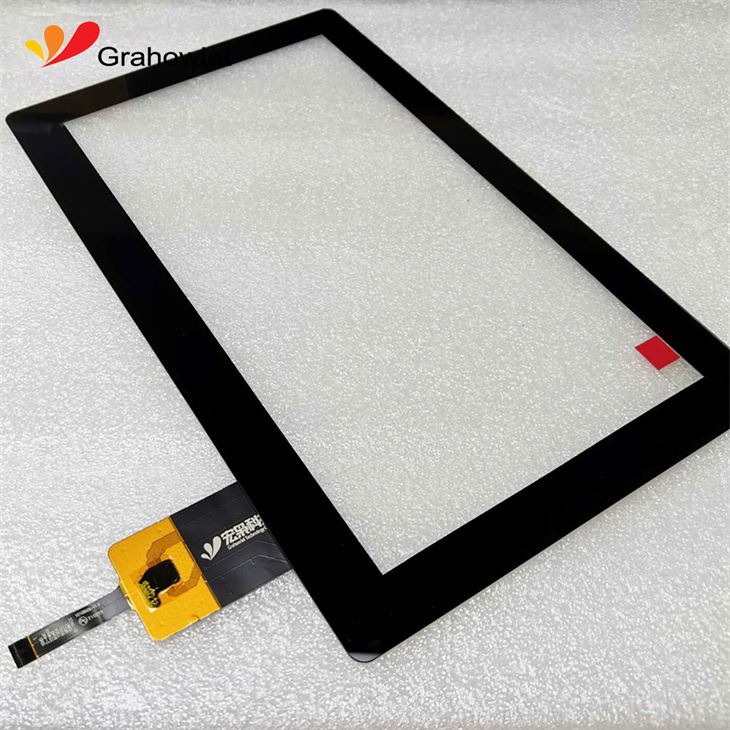

- This is a10.1 inch touch screen panel, capacitive touch screen panel, I2C/one of the standard products in our company. this capacitive touch screen can be normally operated under some special circumstances, for example, water, gloves, thick cover glass 3-10m, 10.1 inch capacitive touch screen mainly used in medical, industrial, security, home appliances and other fields. Deep custom service available. For dimension details please refer to chart below or consult supplier directly:
| Model Number | HX1011827 | Surface Hardness | ≥6H |
| Brand | Grahowlet | Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Size | 10.1 inch | Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Interface Type | IIC/USB | Power Supply Voltage | 2.8V ～ 3.3V |
| Structure | Glass+Glass | Outline Dimension | 258.2(W)x161.50(H)x2.64(D)mm |
| Controller IC | Cypress | Viewing Area | 223.32(W)x125.88(H) mm |
| Touch Points | 10 points | Support Systems | Windows/Android/Linux etc. |
| Transparency | ≥85% | Warranty | 1 year |
Technical Q&A
Q: There are some projects that require the working temperature range of the capacitive screen module to reach very wide, such as - 45 to + 90. Do you have any experience and suggestions for this kind of work?
A: If the wide temperature requirement of the module is more stringent, it needs to be analyzed from two aspects: first, if the capacitive touch screen needs to reach this temperature level, the ordinary sensor production technology can't succeed, and we needs to take special ways to route the sensor, which can be specifically discussed with our technicians; Second, if the display screen needs to reach this temperature level, for the small size, we needs to use OLED (AMOLED) material, for the large size, we needs to heat and radiate the display screen, the specific details can be confirmed with our technician.
Q: According to the survey, the quality reputation of your capacitive touch screen is very good in the whole industrial field. Can you share the experience of quality control?
A: Capacitive touch screen product quality control mainly lies in function and appearance. In function aspect, we have several full checks in the production process, and we will double check out them thoroughly before shipment, so there are few bad feedback from clients on function. In addition, the most important aspect of appearance is dust-free room in production in environmental control, as long as the environmental control is good, the problem of basic fit foreign matter can be solved very well, We have professional quality personnel to control the remaining minor scratches and the grasp of structural parameters. We have a complete quality control system. Once we have confirmed with customer about their quality standards, mass production can be well controlled. That's why we have a good reputation for quality.
