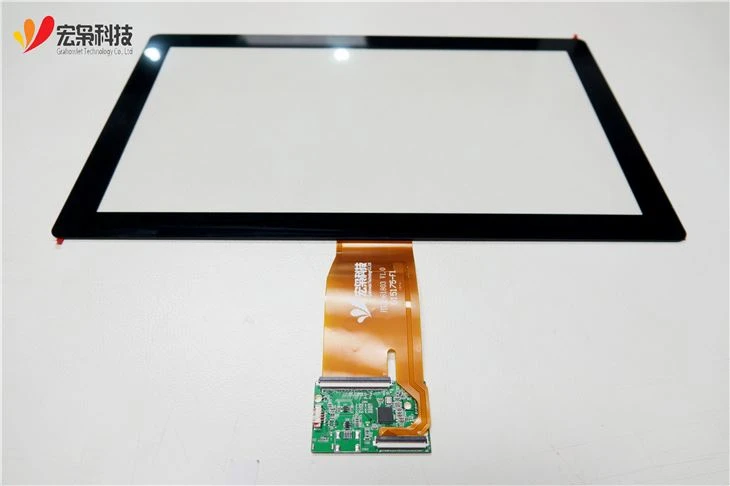

The 15.6 inch capacitive touch panel with USB interface, which is can be used by plug and play. It support operation system like Andriod, windows, linux and so on.15.6 inch capacitive touch screen is mainly applied in Industrial area, like industrial control, medical, automotive, this 15.6 inch capacitive touch panel is with Glass sensor +Glass cover lens . this 15.6 inch capacitive touch panel support operation with gloves or 10mm thick tempered glass on the cover surface; this 15.6 inch capacitive touch screen can be customized with different solutions, outside dimensions and other parameters.
For more information please see table below or contact supplier directly:
CTP | Model Number | HX1561803 |
Brand | Grahowlet | |
Size | 15.6 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |
Outline Dimension | 389.00(W)x237.00(H)x1.60(D) mm | |
Viewing Area | 345.16(W)x194.40(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
Interface Type | USB | |
Material/Structure | G+G | |
Controller IC | ILITEK | |
Touch Points | 10 points | |
Transparency | 85% | |
Surface Hardness | 6H | |
Power Supply Voltage | 5V |
Custom Service
■ Programme evaluation : 1 to 2 working days
■ Drawings:2 to 3 working days
■ Customized products:3 to 4 weeks(after drawings confirmed)
■ Pruduction delivery :3 to 5 weeks
■ Capacity: 100K per month(10.1 inches as a reference)
■ Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF
■ Technical support :We have more than 10 years of experience in touch screen industry, with a professional technical team, can always provide technical support for you.
■ Stable supply chain for at least 3~5 years guarantee
■ One year warranty time for all of our product
