Product Description

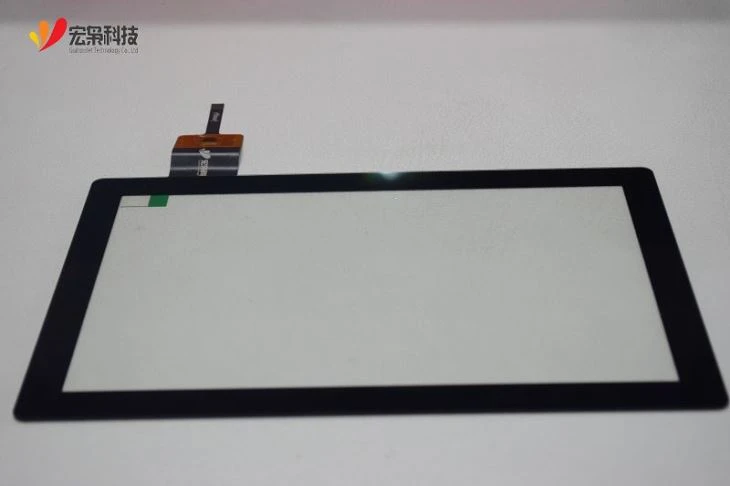

-The 10.1 inch touch screen is a capacitive multi-touch screen that can handle 10 touch points simultaneously. This provides extremely accurate operation supporting many different gestures, including swiping, zooming and more.
-The 10.1 inch touch screen is I2C interface, but we can convert it to USB interface through USB converter board. Through USB interface, it can be directly connected to raspberry PI 3 to realize plug and play.
-10.1 inch touch screen raspberry pi 3 is mainly used in industry, smart home appliances, outdoor terminals, medical electronics and other fields;
Model Number | HX1011701 V2.0 |
Brand | Grahowlet |
Size | 10.1 inch |
Interface Type | IIC/USB |
Structure | Glass+Glass |
Controller IC | Cypress |
Touch Points | 10 points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Operating Environment | -20℃ ～ 70℃,≤85% RH |
Storage Environment | -30℃ ～ 80℃,≤85% RH |
Power Supply Voltage | 2.8V ～ 3.3V |
Module Size | 247.96(W)x166.60(H)x2.00(D) mm |
Viewing Area | 217.76(W)x136.40(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
Our Advantage
 |  |  |  |  | ||||
Cost-effective resource-rich products | Fast Production delivery excellent after-sales service | Stable supply chain long life cycle | Strong technical support short response time | Wide Industry coverage various mature solutions |
Our Service
| programe evsluation | 1 to 2 morking days |
Drawings | 2 to 3 working days |
Customized products | 3 to 4 weeks(after drawings confirmed) |
| Mass Production delivery | 4 to 6 weeks |
| Software debugging | |
| Capacity | 150K per month |
| Process capability | G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 88 ") Cover glass surface treatment AR, AG, AF |
| Technical support | Engineers to provide door-to-door or remote access service within 24 hours |
| Stable supply chain for at least 3 years guarantee | |
| One year warranty time for all of our products | |
Product Feature
Function Feature:
1) Glove function: support gloves made of various materials such as nylon, latex, cotton, plush and leather and of different thickness, 6mm the thickest.
2) Water function: support touch with water, oil, oil-water mixture and brine.
3) Thickness function: Support normal touch with thick cover like tempered glass, 10mm the thickest.
Application
Industrial control
Application environment is complicated in this field. The requirement of the capacitive touch screen is much higher with various sources of interference such as textile machines, HMI, industrial tablet, mobile phones.,etc. The service life, supply life cycle, stability, strong anti-interference and overall impact resistance is usually focused on and G + G structure is generally recommended.
Case Introduction：Industrial data detection equipment
Application environment and features:
1. mainly used as workshop data monitoring, so need to achieve operation with glove and mechanical oil;
2. Capacitive touch screen requires stronger strength and higher impact resistance;
3. Capacitive screen needs strong anti-interference , long service life and life cycle.
Touch panel solution:
1. G +G structure, 2.0mm thick Corning tempered glass cover with surface AF processed;
2. Cypress program with FPC screened;
3. Convenient TP and TFT module frame adhesion Assembly.
FAQ
Q1.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
Q2:How long can you guarantee for the contineus supply of the industrial grade products?
at least 3-5 years.
Q3:How do you control the quality of the items?
Each product will be strictly tested one by one before shipping out.
Q4: Do you offer custom solution?
yes we can offer custom solution if standard producrs don't meet buyers' require.
Q5: If we have some other product requirements that your page don't include, can you help to supply?
Yes as long as it has something to do with our products, and we also have some cooperating manufacturers that match the products around us.
Q6: Is it all right to make customer's own brand name?
Yes, customers'LOGO information can be printed on touch screen products.
Q7: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
