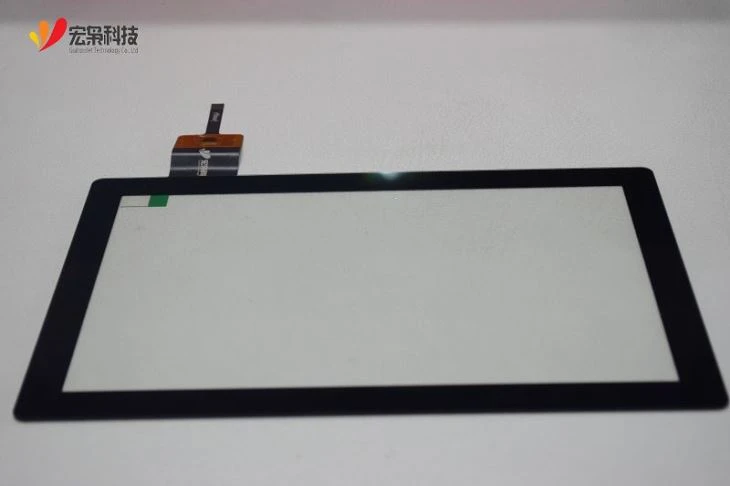

This is a 10.1 capacitive touch panel, this 10.1 capacitive touch panel is with Cypress IC solution, it has strong anti-interference and impact performance, for exmplle, the touch sensor can work very well under very thick cover lens(8-12mm), also it supports touch with water, for example, the touch sensor can wnormally operate if there is water on the cover lens, this function will be useful for end products which is used ourdoor, raining environment. what's more the touch sensor can also support gloved hand touch, which means, people can wear gloves to operate. This size touch screen mainly mainly used in industrial, automotive, medical electronics, smart home appliances and other fields, structure can be customized, IIC/USB interface...
For dimension details, please contact supplier or refer to the chart below:
Model Number | HX1011701 V2.0 |
Brand | Grahowlet |
Size | 10.1 inch |
Interface Type | IIC |
Structure | G+G |
Controller IC | Cypress |
Touch Points | 10 points |
Transparency | ≥85% |
Surface Hardness | ≥6H |
Operating Environment | -20℃ ～ 70℃,≤85% RH |
Storage Environment | -30℃ ～ 80℃,≤85% RH |
Power Supply Voltage | 2.8V ～ 3.3V |
Module Size | 247.96(W)x166.60(H)x2.00(D) mm |
Viewing Area | 217.76(W)x136.40(H) mm |
Support Systems | Windows/Android/Linux etc. |
Warranty | 1 year |
Our Advantage
 |  |  |  |  | ||||
Cost-effective resource-rich products | Fast Production delivery excellent after-sales service | Stable supply chain long life cycle | Strong technical support short response time | Wide Industry coverage various mature solutions |
Custom Service
Reliable Service
FAQ
1..Q: If my products need to be customized, How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect.
3.Q: How long can I expect to get the sample?
A: for standard products in stock, sample can be shipped within 3 days, for customized prodcuts, sample will be supplied within 4 weeks once tooling is completed.
4.Q: Will you offer free sample?
A: we would like to offer free samples in the past, however as each day there are many customers asking for free samples, this has been a big expense to our company, so we have stopped to offer free samples to any customers, please understand.
5.Q: Can you design the CTP in acccordance with our demand?
A: Sure.We will give you the best tooling charge.
6.Q: How to place orders ?
A: If you confirm samples ok, Please send us your purchase order by Email, , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
(1) Product information-Quantity,model number
(2) Shipping information-Company name, Street address, Phone&Fax number, Destination sea port.
(3) Forwarder's contact details if you have any in China.
Or, we can create alibaba online order to you if you prefer..
7.Q: How long of mass production ?
A: 30-35 business days. It depends on different order quantities and part number.
8. Q: How about the quality guarantee period?
A: One year!
9. Q: How can you guarantee the production quality ?
A: Our production quality follow ISO9000 standard system, stable design team,10 years experience of QC team and strictly quality control system guarantee the production quality. accept third part Inspection,high&low temperature storage&operating test during high.
