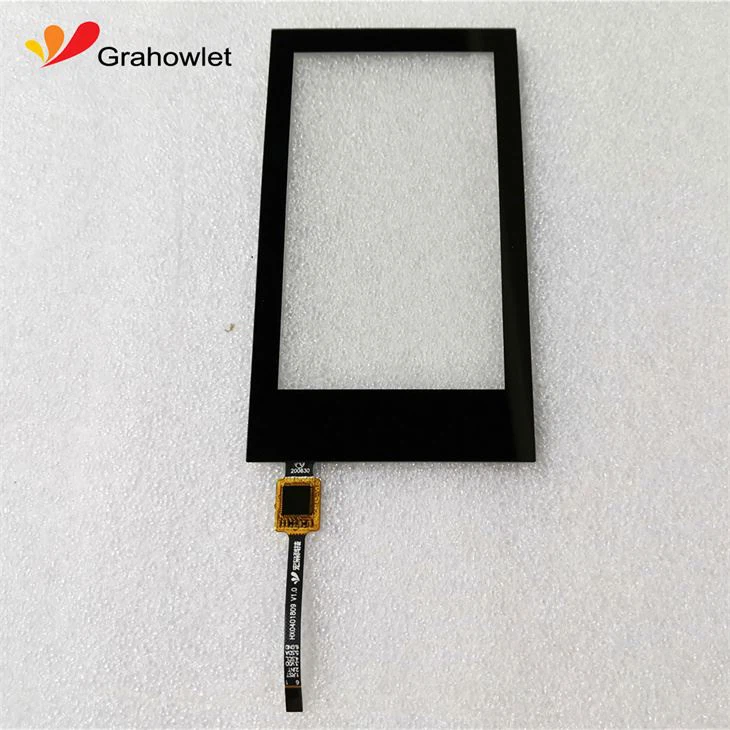

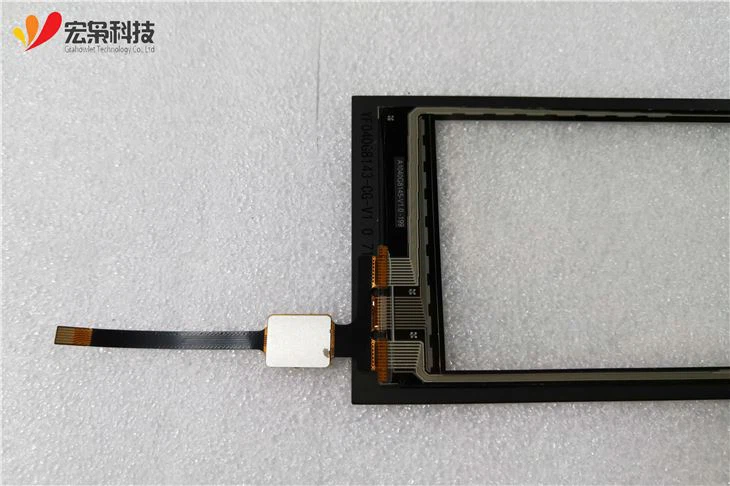

The projected capacitive 4 inch IIC/USB/Rs232 touch screen panel is mostly applied in consumer electronics, support special-shaped structure customization, mainly used in handheld terminals, security, medical electronics and other fields, surface treatment AG AR AF and other specific effects processing are supported.
| Model Number | HX0401809 |
| Brand | Grahowlet |
| Size | 4.0 inch |
| Interface Type | IIC/USB/RS232 |
| Structure | G+G |
| Controller IC | GT911 |
| Touch Points | 10 points |
| Transparency | ≥85% |
| Surface Hardness | ≥6H |
| Operating Environment | -20℃ ～ 70℃,≤85% RH |
| Storage Environment | -30℃ ～ 80℃,≤85% RH |
| Power Supply Voltage | 2.8V ～ 3.3V |
| Outline Dimension | 65.00(W)x110.20(H)x1.45(D)mm |
| Viewing Area | 52.44(W)x87.00(H) mm |
| Support Systems | Windows/Android/Linux etc. |
| Warranty | 1 year |
FAQ
Q: Can you tell us about your company's main products, process and size range?
A: Our main products include: special glass cover, capacitive touch screen, LCD screen, capacitive touch screen module, supporting driving board;
Technical process: G+G structure, P+G structure and GFF structure, including flexible touch screen,
Bonding process: Air bonding & Optical bonding.
Size range from 1.3 inch to 65 inch, and there are no projects in batch production with size above 65 inch at the moment.
Q: What are the precautions for the application of capacitive touch screen made of PMMA cover?
A: As for the cover of capacitive touch screen made by PMMA material, we must consider the material of sensor, the impact of high and low temperature shock and warpage. As for the specific details, we have some mature application cases. Customers can contact with our technicians for the detailed solution and parameters according to the actual needs of specific products.
contact us:naai@grahowlet.com
