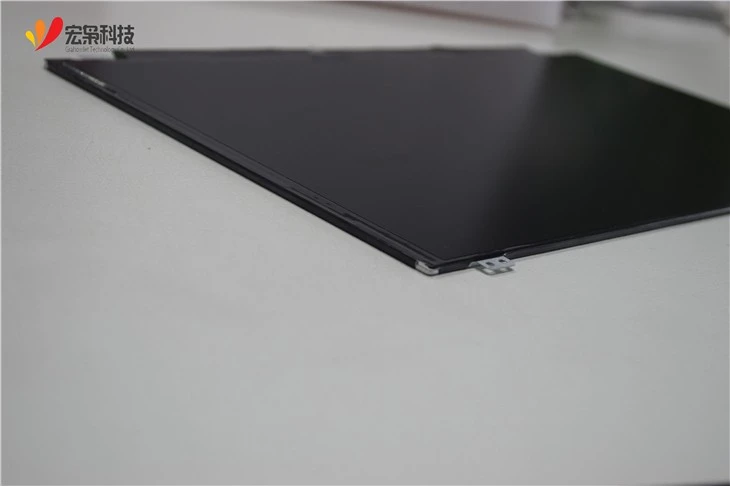

15.6 , display touch screen display module, Open Frame usb 15.6 inch capacitive touchscreen monitor for raspberry pi,Consumer electronics applications, G+G structure, airbonding and optical bonding optional, mainly used in intelligent security, advertising terminals, financial portable terminals and other fields. Support custom of various structures and surface AG AR AF and other special effects processing. resolution optional, brightness can be customized, can match a variety of different interface conversion Board and drive Board, Convenient for customers to use;
TPM | Model Number | HX1561705 V2.0 |
Brand | Grahowlet | |
Size | 15.6 inch | |
Operating Temperature | 0℃ ~ 50℃ | |
Storage Temperature | -20℃ ~ 60℃ | |
Outline Dimension | 389.00(W)x237.05(H)x5.95(D) mm | |
Viewing Area | 345.43(W)x194.74(H) mm | |
Active Area | 344.16(W)x193.59(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
CTP | Interface Type | USB/IIC |
Structure | G+G | |
Controller IC | ILITEK | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 5V | |
TFT | Resolution | 1920x1080 |
Interface Type | EDP | |
Luminance | 220 cd/m² | |
Viewing Angle | 45/45/20/40 |
Custom Service
Programme evaluation : 1 to 2 working days
Drawings:2 to 3 working days
Customized products:3 to 4 weeks(after drawings confirmed)
Pruduction delivery :3 to 5 weeks
Capacity: 85K per month
Process capability: G+G, G+F+F, shielding process, overall module joint process(Optical Bonding)(maximum 65 )
Technical support :Engneers to privide door-to-door or remote access service within 24 hours
Stable supply chain for at least 3~5 years guarantee
One year warranty time for all of our product
Product Features
GLOVE FUNCTIONSupport gloves made of various materials such as nylon,latex, and of different thickness, 6mm the thickest. | WATER FUNCTION Support touch with water,oil, | THICKNESSSupport normal touch with thick cover like tempered glass,8mm the thickest |
Anti Glare (AG) processing could eliminate screen surface mirror problem through converting direct light to diffuse light on the touch screen.
Packing
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products
