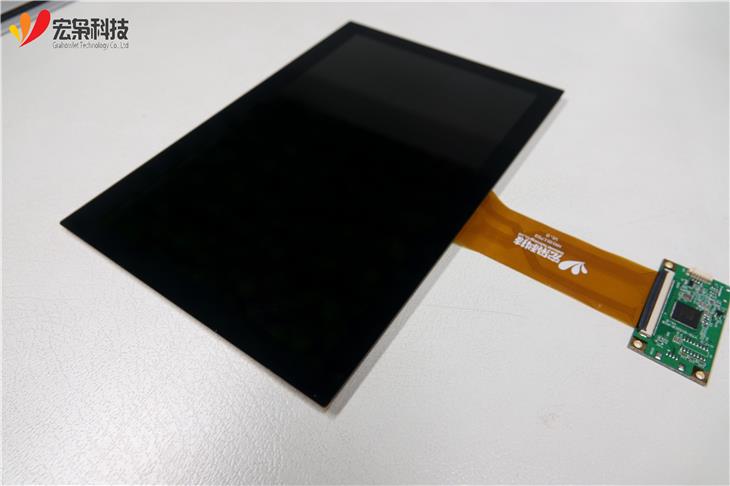

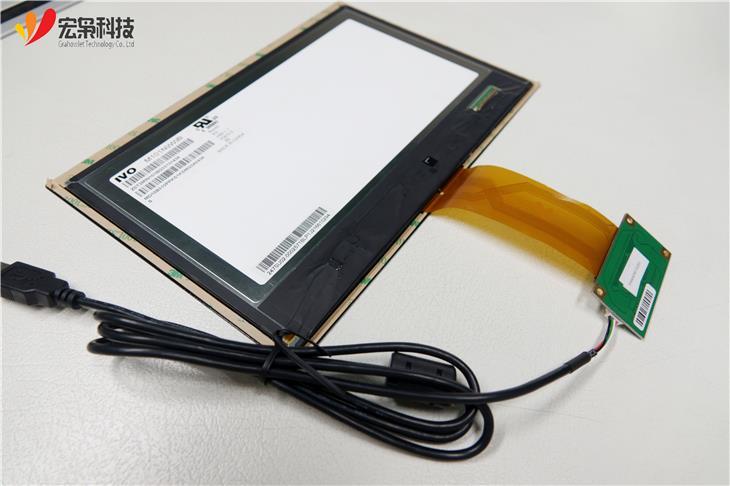

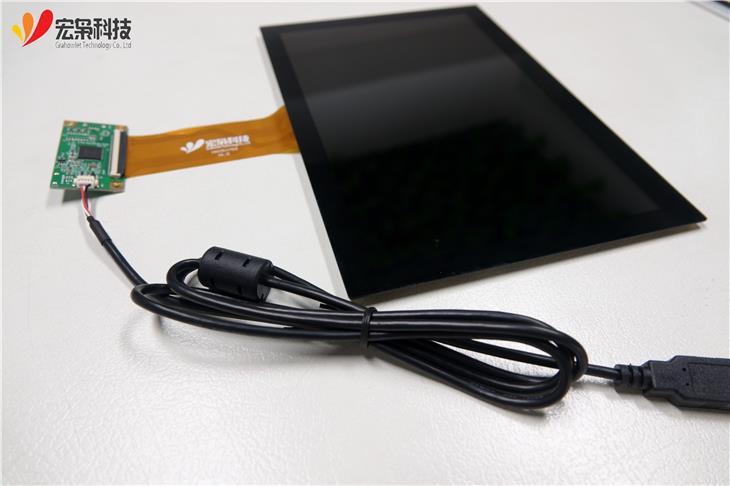

This 10.1 inch capacitive touch screen display module is a high quality cost-effective product ,it enjoys great popularity as well.
Key benifits of our product:
Stable performance--we use industrial grade controller IC,the touch panel can fully satisfy the requirements of various industies,such as automotive industries,medical field,industry control.
campatible with raspberry pi--it can work perfectly with a raspberry pi,it will helps you to do quick prototype.We will provide all technical supports and developing tools.
custom service available--we can customize the size,the stucture,the cover glass,sensor,electrical parameters as well as the performance of the touch panel.
lifespan of the product and Continuous supply capacity---we have the ability to service clients accross the spectrum.We have deep opperation with many companies.We can supply the touch panel and tft lcd display with long lifespan.
The video below shows the resistance of our touch panel.It can withstand a 535g steel ball drop from 2 meter high.
| TPM Specifications | ||
| TPM | Model Number | HX1011704 |
| Brand | Grahowlet | |
| Size | 10.1 inch | |
| Operating Temperature | -20℃ ～ 70℃ | |
| Storage Temperature | -30℃ ～ 80℃ | |
| Outline Dimension | 241.00x163.20x6.71mm | |
| Viewing Area | 216.96x136.20mm | |
| Active Area | 215.96x135.20mm | |
| Support Systems | Windows/Android/Linux etc. | |
| Warranty | 1 year | |
| CTP | Interface Type | USB |
| Structure | G+G | |
| Controller IC | ILITEK | |
| Touch Points | 10 points | |
| Transparency | 85% | |
| Surface Hardness | 6H | |
| Power Supply Voltage | 2.8~3.3V | |
| TFT | Resolution | 1280*800 |
| Interface Type | LVDS | |
| Luminance | 350 cd/m2; | |
| Viewing Angle | ALL | |
Packing
1) Packed in anti-static bag or plate
2) Wrap in air bubble film
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted customed package.
FAQ
Q1: How long could I get the reply of my inquiry?
Buyers will receive a answer within 12hours.
Q2: How do you control the quality of the items?
Each product will be strictly tested one by one before shipping out
Q3: How is after sales service?
Our sales & engineer will provide the sustained support for technical or other help through out your project process.
Q4: How long can I get reply?
Within 24 hours. Chinese working time 8:30-18:00 Monday-Friday online service to help you solve problems.Also reply by phone or email,Skype is possible at night time and weekends.
Q5: What shall we do if we find any item missing or defectiv after receiving the goods?
Please contact us ASAP, we will check it and offer the best solution according to the situation.
