Lcd Touch Screen For Medical

Full range of standard product in stock (no need customization)

10.1 inch capacitive tft lcd touch screen for medical :the product with ILITEK touch controller IC,support operation with gloves, and working well with additional 10mm thick tempered glass on the top.Mainly used in medical products, advertising equipment, portable mobile terminals, security and other fields, support depth customization, including structural parts and Special surface treatment --AG AR AF, irregular structure etc.;

This 10.1-inch capacitive touch screen module belongs to the wide-temperature industrial product, which is lighter and thinner. It is exported directly from USB interface, 1280*800 resolution display screen and LVDS interface, which can be compatible with various common Operation systems, it can be equipped with drive board and cable, which is more suitable for flat assemble module structure installation products. The silk screen printing around is black，the display polarizer is relatively black, so the Black effect of the air bonding is better;

Product Description

Our Service

If you want USB interface, we can supply IIC to USB Bridgeboard

■ Programme evaluation : 1 to 2 working days

■ Drawings:2 to 3 working days

■ Customized products:3 to 4 weeks(after drawings confirmed)

■ Pruduction delivery :3 to 5 weeks

■ Capacity: 100K per month(10.1 inches as a reference)

■ Process capability: G+G, G+F+F, shielding process, overall module joint  process(Optical   Bonding)(maximum 65 )Cover glass surface treatment AR, AG, AF

■ Technical support :Engneers to privide door-to-door or remote access service within 24 hours

■ Stable supply chain for at least 3~5 years guarantee

■ One year warranty time for all of our product

Product Features

1.Support Touch with glove of all materials and  thickness with 6mm

2.Support Touch with water/brine

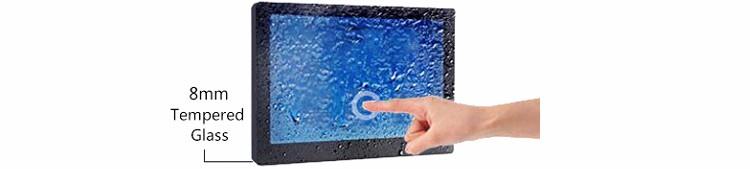

3.Cover glass Support -8mm thickness--explosion-proof

RFQ

Q: What are the main reasons for the water ripple on the air-bonded screen module?
A: The phenomenon of water ripples is also related to the structural design and the panel material of the display itself. The following is mainly analyzed from two aspects:

1)Structural: No matter TN panel or IPS panel, as long as the surface touch screen is pressed in the design of the structure, the backlight part of the back display screen is pressed by the external force of the casing to cause deformation, which will cause water ripple. Therefore, when designing the structure, it is necessary to avoid the backlight part of the display screen as much as possible, so that it is not squeezed by external force, or it is forced to be evenly distributed over the entire surface;

2)Panel material: If the capacitive screen module adopts the display withTN panel, the strength of the tempered glass(cover lens) should be sufficient, otherwise the surface pressing will cause water ripple when the deformation contacts the glass of the display panel; If it is the IPS panel display, only the backlight part on the back of the display screen should not be locally squeezed by external force and no water ripple will occur;

Q: What are the reasons for the air-bonded capacitive screen module to generate Newton's rings? How to solve the problem?
A: The reason for air bonding screen module generating Newton's ring is that the surface of capacitive touch screen and the LCD screen are not parallel enough, and the issue is generally caused by the collapse when the capacitive touch screen being pressed.

To improve this situation what we need do is:

first, increase the TP intensity

second, increase the gap between TP and LCM.

Third: to use anti-Newton ring polarizer or the anti-Newton ring TP;
