Product Description
5 inch lcd touch screen for embedded system, with CTP and LCD display dimension 1:1 bonded, which is applied in embeded system like industrial control.
This 5-inch capacitive touch screen is the standard product of our company. It can basically match the 800*480 resolution display products of various brands. It adopts GG structure solution and has very stable performance, suitable for various application environments, and the display structure is basically 1:1 design, suitable for embedded structure installation, the sensor adopts tempered double-sided hidden treatment.
Product Specification
TPM | Model Number | HX0501801 |
Brand | Grahowlet | |
Size | 5.0 inch | |
Operating Temperature | -20℃ ~ 70℃ | |
Storage Temperature | -30℃ ~ 80℃ | |

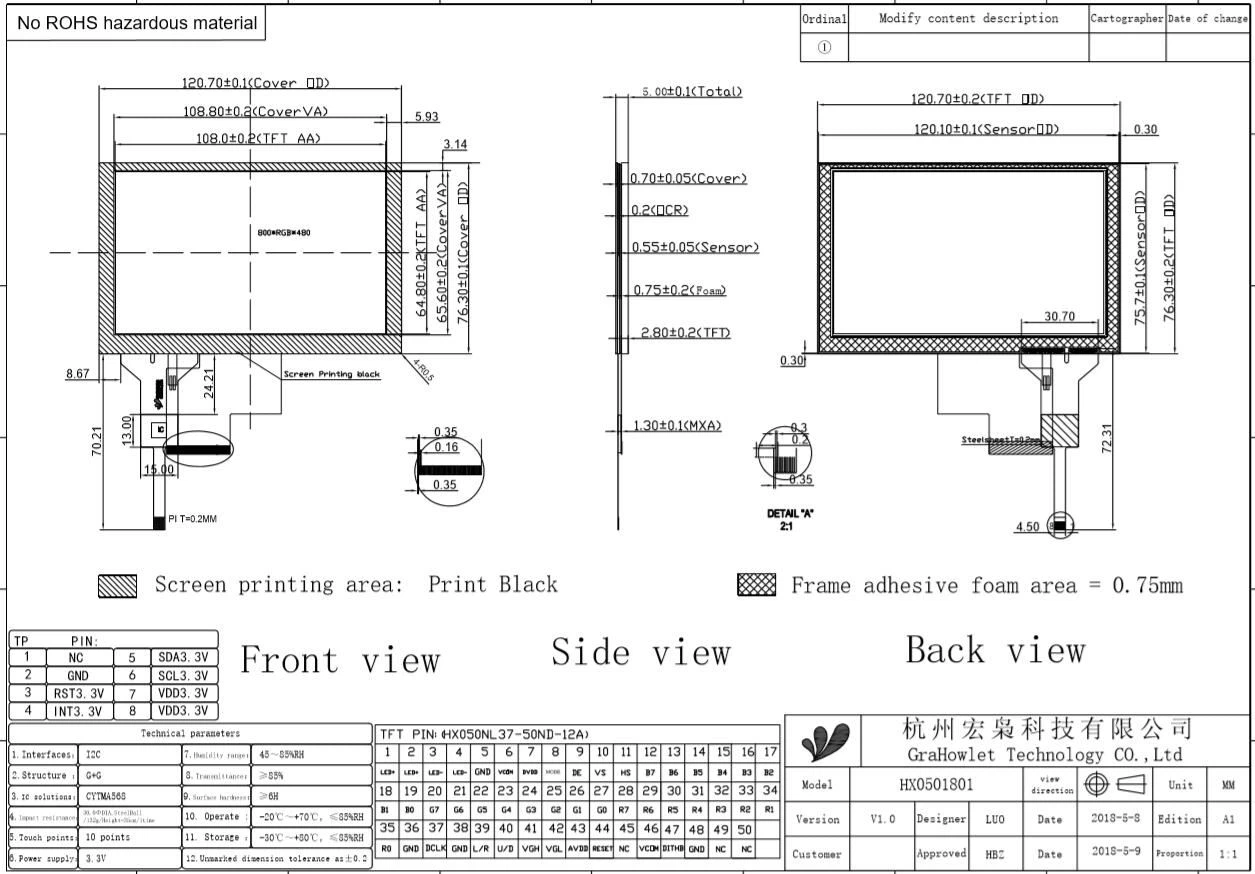

Outline Dimension | 120.70(W)X76.30(H)X5.00(D)mm | |
Viewing Area | 108.80(W)X65.60(H)mm | |
Active Area | 108.00(W)X64.80(H) mm | |
Support Systems | Windows/Android/Linux etc. | |
Warranty | 1 year | |
CTP | Interface Type | IIC/USB |
Material/Structure | G+G | |
Controller IC | Cypress | |
Touch Points | 10 points | |
Transparency | ≥85% | |
Surface Hardness | ≥6H | |
Power Supply Voltage | 2.8V ~ 3.3V | |
TFT | Resolution | 800*480 |
Interface Type | RGB/HDMI/VGA | |
Luminance | 350 cd/m2; | |
Viewing Angle | 70/70/50/70 |
