Product Description
The 7 Inch LCD Touchscreen For Raspberry Pi can support glove function, water-based function and thick cover function, mainly used in outdoor equipment, pure industrial equipment, medical equipment and smart home appliances equipment, can support depth customization, including structural parts and surface special treatment;
The 7 Inch LCD Touchscreen For Raspberry Pi is a new product. The display resolution is 1024*600, LVDS interface, industrial wide temperature, It has excellent anti-interference performance. It can support some special functions; the display screen is IPS panel material.The capacitive touch screen and the display screen can also be directly optical bonded.

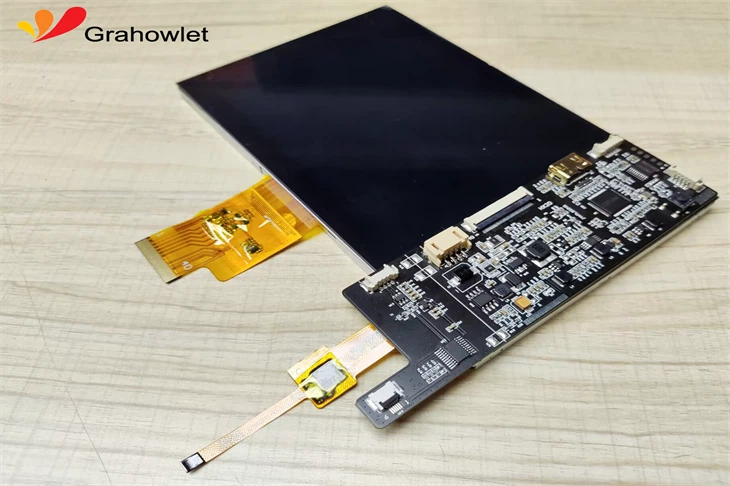

The 7 Inch LCD Touchscreen contacted to Raspberry Pi by USB and HDMI interface,we can provide "IIC TO USB"bridge board and "LVDS TO HDMI" driver board.
 | MODULE PRODUCT DETAILSTPM Number:HX0701859 Size:7.0 inch Operating Temperature:-20℃ ~ 70℃ Storage Temperature:-30℃ ~ 80℃ Outline Dimension:165.00x100.00x7.79mm Viewing Area:155.21(W)x86.92(H) mm Active Area:154.21(W)x85.92(H) mm Bonding workmanship:Optical Bonding Support Systems:Windows/Android/Linux etc. Warranty:1 year |

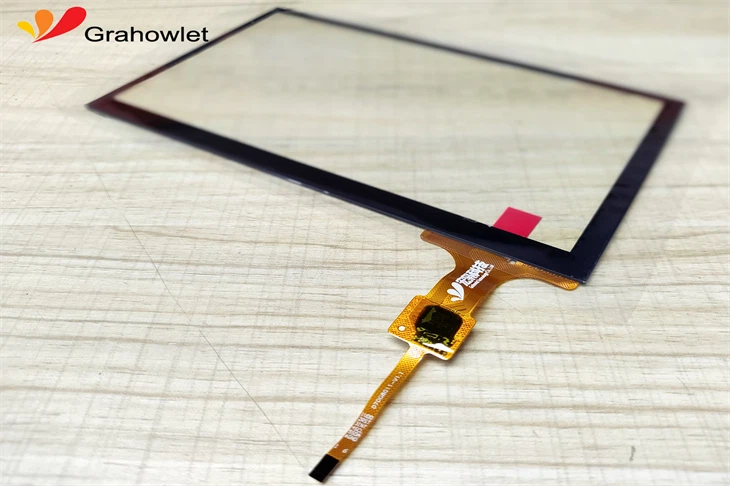

 | PCAP(projected capacitive)PCAP Name:HX0701603 Light Transmittance:≥85% Surface Hardness:≥6H Interface Type:IIC/USB Surface treatment:AG+AF Controller IC :Cypress Structrue:Glass+Glass Touch Points:1-10 Points Power Supply Voltage:2.8V ~ 3.3V |
 | TFT LCD DISPLAYResolution:1024x600 Interface Type:LVDS/HDMI/VGA Luminance:1000 cd/m² Viewing Angle:ALL |
Custom Service
If you want USB interface, we can supply IIC to USB Bridgeboard contact us
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: If the display screen and the capacitive touch screen are designed to be assembled separately, what attention should be paid?
A: If the installation is separate for display and touch, the main factor should be considered is the gap between the capacitive touch screen and the display. it is better to control it within gap between 0.5 to 2mm because if it is less than 0. 5mm when the display screen is working, the radiation interference will become larger, which may interfere with the capacitive screen, and also when the gap is too close, If the capacitive screen itself is not strong enough, the deformation of the press may appear after contacting the display screen, which might result in water ripples or Newton ring. However If the gap is higher than 2mm, our eyes will feel the visual deviation between touch and display, the touch feeling will be greatly affected, and with the gap being too large, it is easy to be affected by external dust if the sealing is not particularly good.
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?
A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play. Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system. For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
