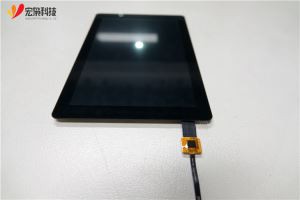

-10.1 Inch Touch Screen Raspberry Pi：Industrial application partially, G+G structure, strong anti-jamming performance,Special surface treatment --AG AR AF,with cypress touch controller ic can support glove function, water-based function and thick cover function, mainly used in outdoor equipment, pure industrial equipment, medical equipment and smart home appliances equipment, can support depth customization, including structural parts and surface special treatment;
-This 10.1-inch capacitive touch display product is a standard product launched by our company for customers in the industrial field. It can support some special functions and has excellent anti-interference performance. It has black screen printing around and the interface is 12pins IIC. It can also directly export the USB interface through the IIC----USB board to achieve free drive, 1920x1200 resolution display screen and LVDS interface, which can be compatible with various common Operation systems, it can be equipped with HDMI/VGA drive board and cable, which is more suitable for flat assemble module structure installation products.
| Model Number | HX1011829 | PCAP Number | HX1011701 |
| Brand | Grahowlet | Interface Type | I2C/USB |
| Size | 10.1 inch | Structure | Glass+Glass |
| Operating Temperature | 0℃ ～ 50℃ | Controller IC | CYTMA568 |
| Storage Temperature | -20℃ ～ 60℃ | Touch Points | 1~10 points |
| Bonding workmanship | Optical Bonding | Power Supply Voltage | 2.8V ～ 3.3V |
| Outline Dimension | 247.96(W)x166.60(D)x4.88(H) mm mm | TFT Number | EV101WUM-N20 |
| Viewing Area | 217.76(W)x136.40(H) mm | Resolution | 1920x1200 |
| Active Area | 216.81(W)x135.50(H) mm | Interface Type | LVDS/HDMI/VGA |
| Support Systems | Windows/Android/Linux etc. | Luminance | 450 cd/㎡ |
| Warranty | 1 year | Viewing Angle | ALL |
Technical Q&A
Q: Is there any suggestion regarding the capacitive touch screen module solutoin directly used by raspberry pi and orange pi?
A: We have some mature projects cases and the best way is to connect the touch screen directly through USB interface to the Raspberry Pi or the orange Pi, and the display can be directly connected through HDMI interface, this way the whole solution can be implemented through plug and play. Large size touch screen will be designed directly with USB interface, small size is general designed with IIC interface, so we will do is to provide the board which changes the IIC into USB. however, customers need to contact our technicians to check the configuration and software system. For display, we can provide RGB to HDMI, LVDS to HDMI, MPI to HDMI, EDP to HDMI and other driver boards to realize the connection with Raspberry Pi and orange pi;
