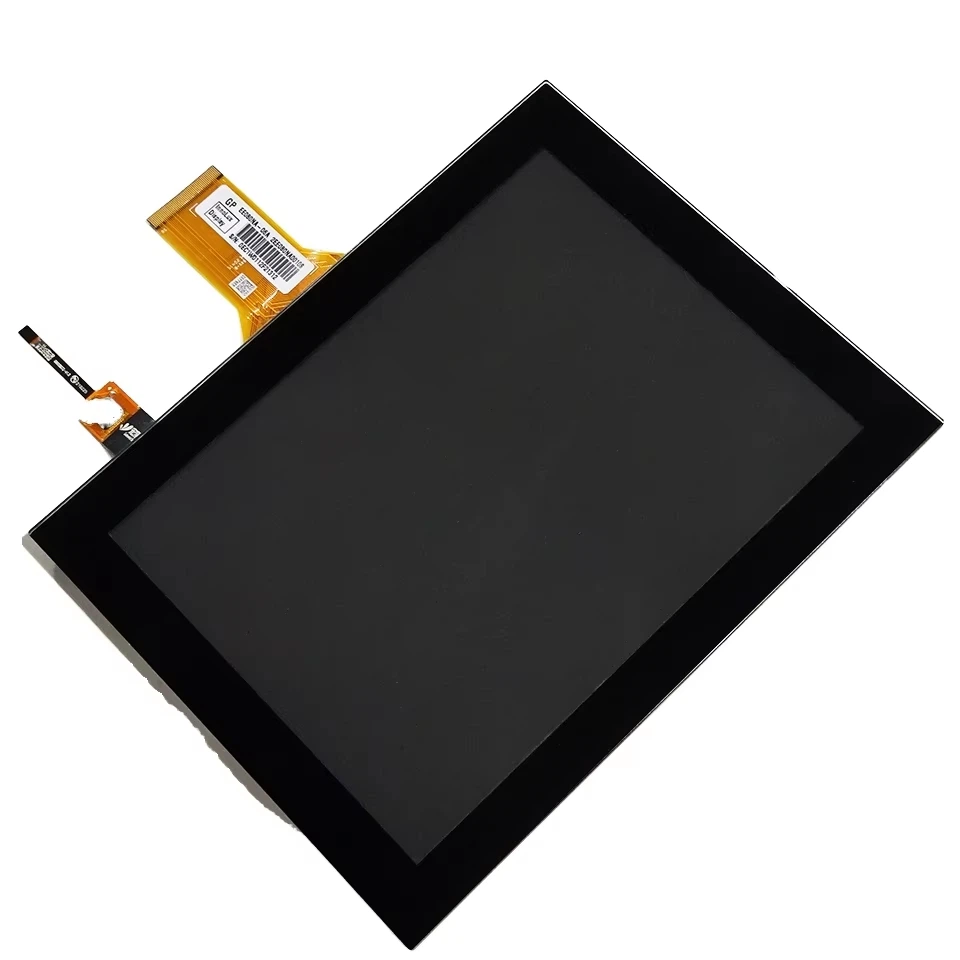

Products Description
I2C/USB dual interface
≥85% transparency, ≥6H surface hardness
Operating temperature: -20°C ~ 70°C
5.0V low power supply
|
Model Number |
HX0801809 |
Touch Points |
10 Points |
|
Bonding |
Air Bonding |
Structure |
(G+G)+TFT |
|
Controller IC |
Cypress |
Brightness |
500cd/m² |
|
PCAP Interface |
USB/IIC |
Viewing Angle |
all |
|
TFT Interface |
RGB |
Outline Dimension |
185.70x120.70x10.38 mm |
|
Support Systems |
Windows/Android/Linux etc. |
Active Area(mm) |
120.4(W)x86.16(H) mm |
|
Power Supply Voltage |
5V |
Viewing Area(mm) |
120.4(W)x86.16(H) mm |
|
Resolution |
800*480 |
Warranty(year) |
1-Year |
Technical Q&A
Q: Do your 5.7 inch Touch Screen LCD offer remote control functionality, and can you provide custom services based on customer requirements?
A: Yes, our LCD come with optional remote control functionality, allowing users to independently adjust display settings. Additionally, we offer custom services to meet specific customer requirements, ensuring that our LCD and other products align perfectly with their needs.
Q: If our product requires different sizes of TFT LCD displays, are you able to provide the necessary support?
A: Certainly. We have extensive experience and resources to meet the demands of different sizes of displays. Our engineering team will work closely with you to ensure that each size of the display meets your specification requirements and can provide customized solutions to fit your product line.
Q: Which 5.7 inch Touch Screen LCD operating systems do your displays support?
A: Our LCD displays support a variety of operating systems, including but not limited to Windows, Linux, Android, and MCU. Our products are optimized to ensure compatibility with these operating systems, providing a smooth user experience. If there are specific operating system requirements, our technical team can also provide the necessary support.
